5gm motor and ESC
5 in stock
The 5gm 2000kv brushless motor (also called 1400) is an excellent little motor that is somewhat smaller than our 10 gm motor. It is designed to be used with 1S or 2S Lipo batteries. This motor is perfect for our 28″ size models or other lightweight models. Quantities are limited.
Specifications: Max Power 30W Diameter: 14mm Shaft size: 1.5mm
With 6×3 2-blade propeller and 2S battery: Current: 2A, Thrust: 80gm
With 5×4.5 2-blade propeller and 2S battery: Current 2.3A, Thrust 70gm
The propeller is not included, but we do offer some propellers for sale separately!
We are selling this motor with the matching ESC. The ESC has a 5V BEC to power your receiver. This is a small ESC with short wires (JST battery connector). The ESC measures 23x13mm and weighs about 5gm. For 1S or 2s Lipo battery.

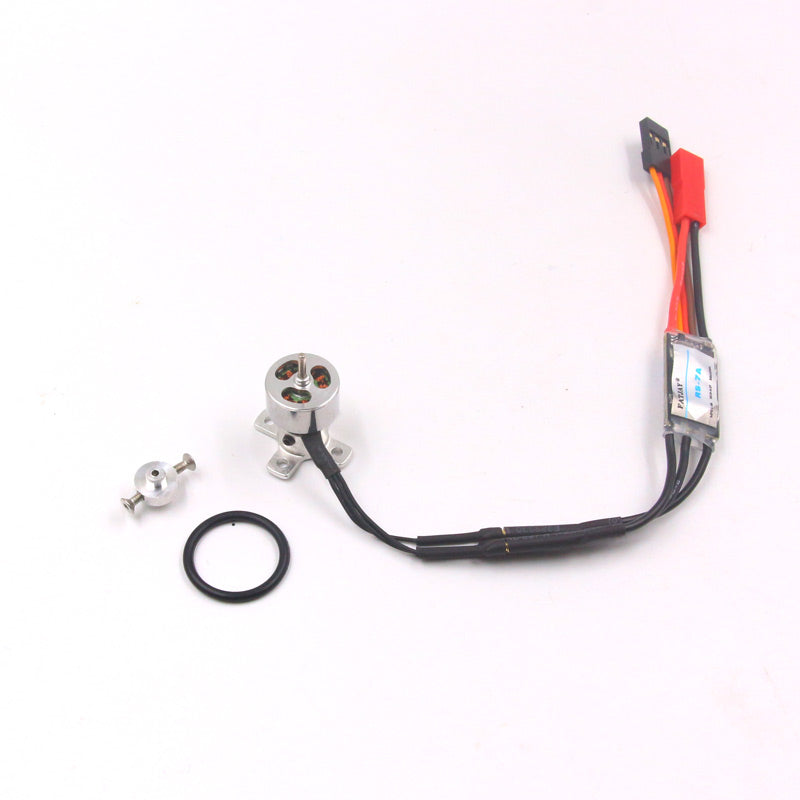

The package includes: an aluminum motor mount, O-ring propsaver, Prop adapter, and 1.5mm bullet connectors for the motor and ESC. For best results we strongly recommend using a removeable “threadlocker” compound on the tiny grub screws that hold the propsaver to the motor shaft and the motor to the mount.
|Dimensions||1 × 6 × 9 in|
