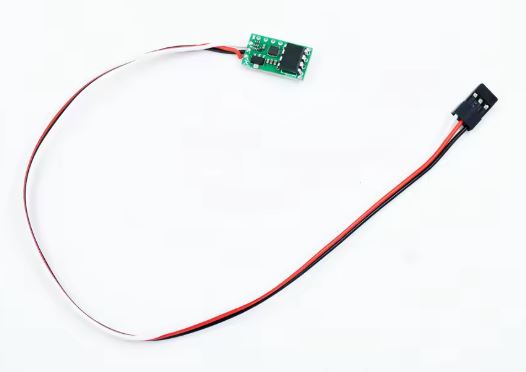

VERY SMALL 7-amp ESC (Electronic Speed Control) for BRUSHED motors

This 7amp ESC is for small BRUSHED motors.

It can use a 1S-3S battery - and up to 7 amps current draw - and up to 13amps in a short burst!

This is a circuit board with the throttle wire connector for the receiver included.  You'll need to solder the motor connectors to the circuit board. NOTE: this is a BIDIRECTIONAL ESC (tanks, cars, boats) but it can be easily converted to UNIDIRECTIONAL (aircraft) with a simple jumper connection. See the picture below.

Bidirectional throttle - for R/C boats, tanks, cars, trains

Unidirectional throttle - for R/C aircraft

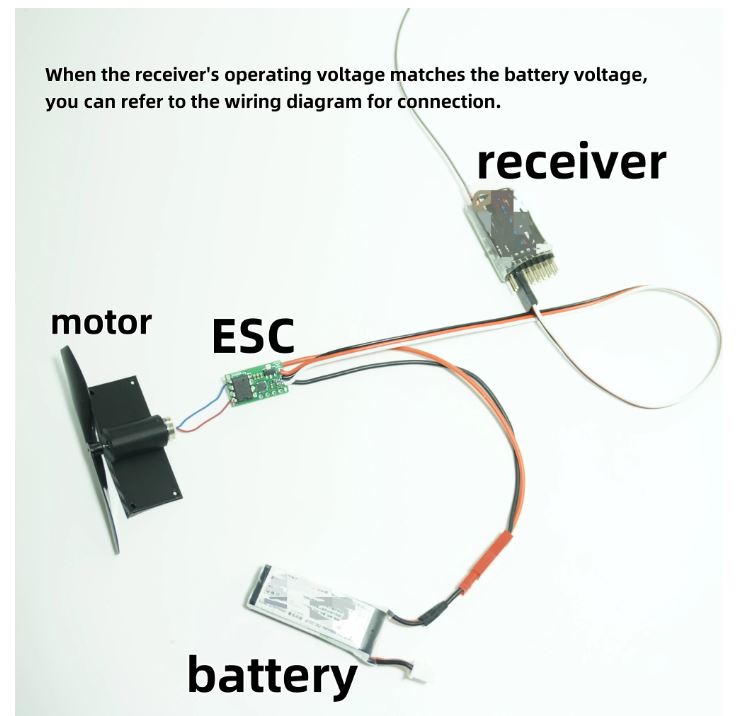

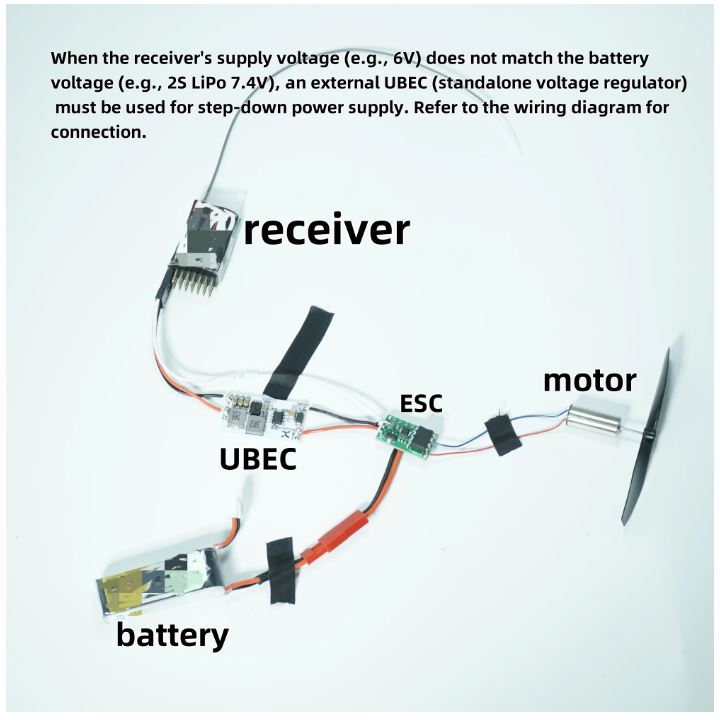

Note:   This ESC does NOT have a BEC to supply power to your receiver!  You can use a direct connection with a 2S battery or you can use a separate UBEC to supply power to your receiver.

SPECIFICATIONS:

Size: 21.6 x 12.6 x 6mm

Weight: about 2g (not including wire)

Function: bidirectional forward and reverse direction, linear speed regulation. Can be modified for unidirectional control.

Supports input voltage: 3.7V-12V (1-3S Lipo battery)  If you use a 1S battery it needs to have a high C rating to handle the amperage draw, or the ESC may shut down.

Motor current: normal output 7A, maximum (burst) 13A

Brake Function:  default setting is "on"
