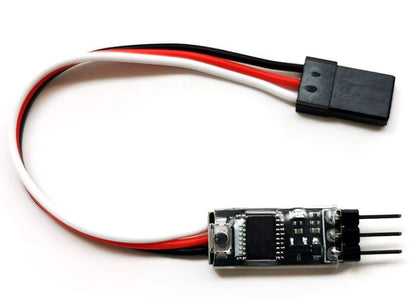

Multifunction Servo Controller CV1
Multifunction Servo Controller CV1
Regular price
$12.95 USD
Regular price
Sale price
$12.95 USD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
This one small & ingenious electronic device will perform multiple functions, replacing several separate devices. There are seven individual functions that are programmed with a single button, as follows:
1) Reset - press button one time to reset the unit to default settings
2 times- Input setting - default is PWM (pulse width modulation), but this can be changed to PPM or SBUS or CRSF
3 times - Delay - you can delay the servo's operation up to 6 seconds
4 times - Speed - you can slow down the servo's operating speed.
5 times - Time coefficient - sets the time interval for the delay and speed - in tenths of a second (from 0.1 to 1.0)
6 times - Travel expander - increase the servo throw up to 180 degrees
7 times - Reverser - you can set the servo to normal or reverse

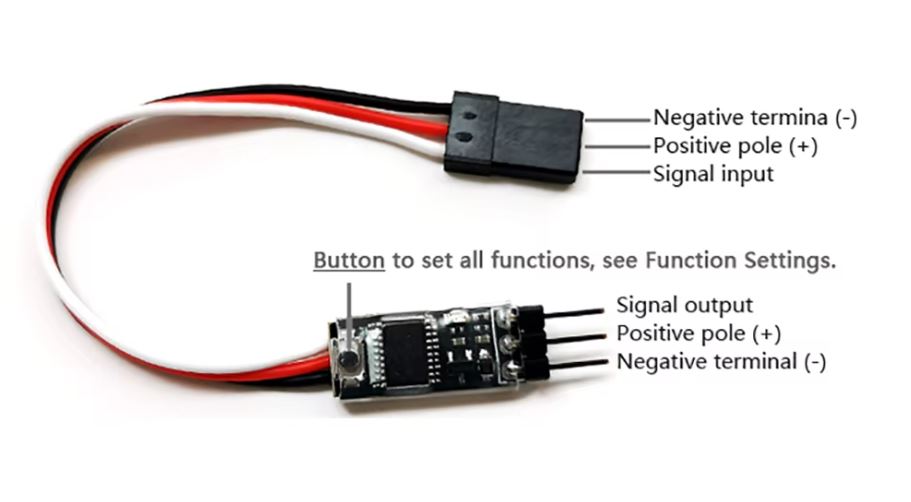

Each function is accessed by pressing the small button - when you reach the desired function, the button is pressed again to select the desired parameter. So this is not very easy, but if you make a mistake its easy to try again, or "reset" and start over. Instructions are included. Note: its possible to use more than one device in parallel or in series to do some neat things, like a sequenced landing gear door or multiple-segment flaps.
SPECIFICATIONS:
Input voltage: 3V-30V (5v is recommended)
Product size:19.7x7.8mm
Product weight: about 3g
IMPORTANT NOTE: When varying the amount of "throw" adjustment, its possible to make the servo motor exceed its operating limits! To avoid stalling and burning out the servo motor you may need to adjust the end points using your radio transmitter settings. Also, this device may cause the servo to "jump or "stutter" - if that happens then lower the speed setting.
