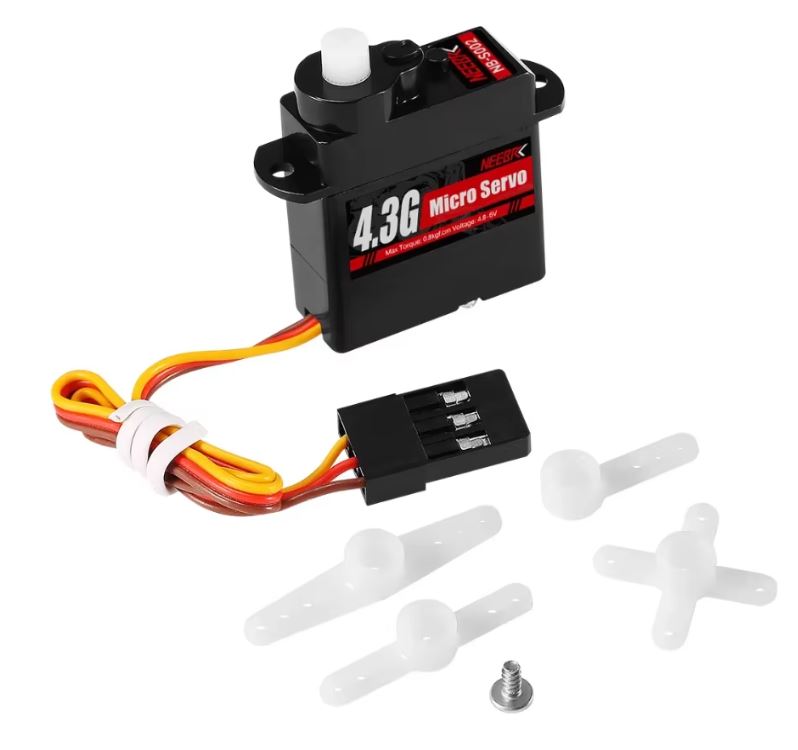

4.3gm DIGITAL MICRO SERVO METAL GEAR

$12.99

metal gear 4.3 servo

16 in stock

Description

This small metal-gear servo is appropriate for small RC models where extra strength is needed – such as direct-connect retracts and nose-gear steering.  A perfect combination of small size and power!  The 4.3gm servo weighs approx. 5.8 gms including the wire and connector. Supplied with four plastic servo arms and mounting screws. (you may simply glue the servo onto the model if you prefer)

SPECIFICATIONS:

Brand: Surpass Hobby part# S0004M
Voltage: 4.8-6.0V DC
Torque *:≥0.65kgf·cm at 6.0V
Speed * : ≤0.12sec/60° at 6.0V
Operating Angle: 90°±10°
Mechanical limit Angle: 360°
Weight: 5.8± 0.2g
Size: 20.2×8.5 x24.1mm
Shell material: ABS
Motor type: coreless

FYI: The two halves of the servo’s plastic outer case are held together by micro-size screws, not by a plastic band.

Additional information

Weight .10 lbs
Dimensions 1 × 6 × 9 in
