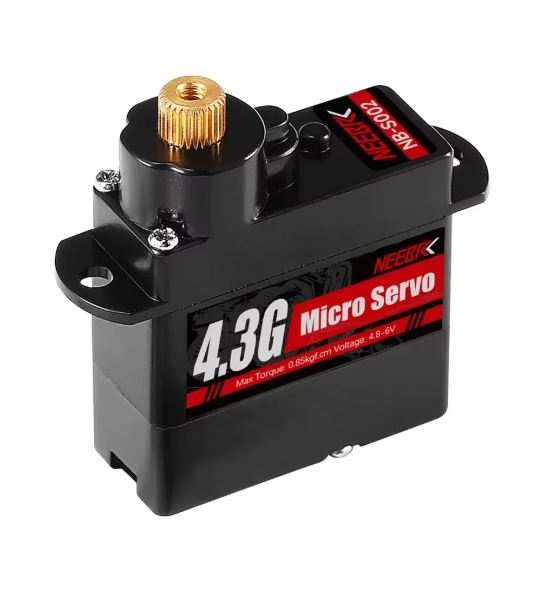

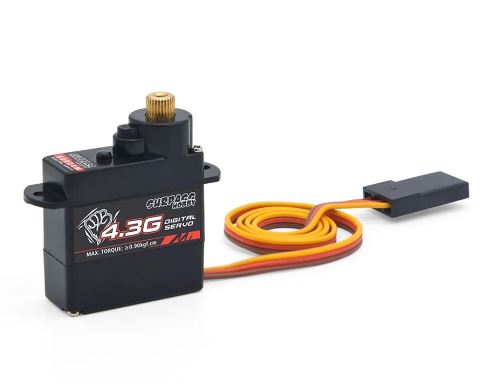

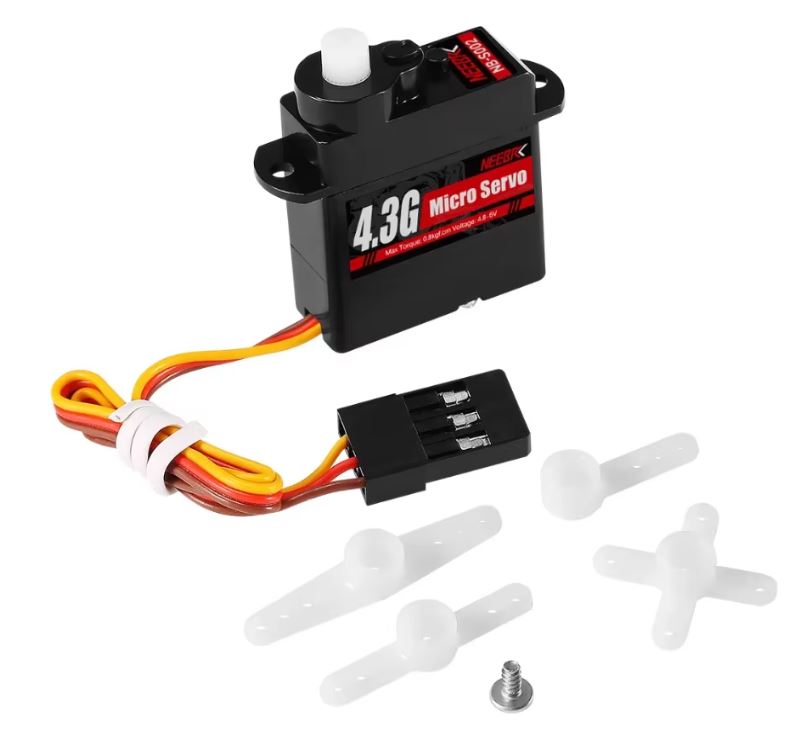

4.3gm DIGITAL MICRO SERVO (2 kinds)

This small servo is appropriate for small RC models where extra strength is needed - such as for direct-connect retracts and nose-gear steering. A perfect combination of small size and power!

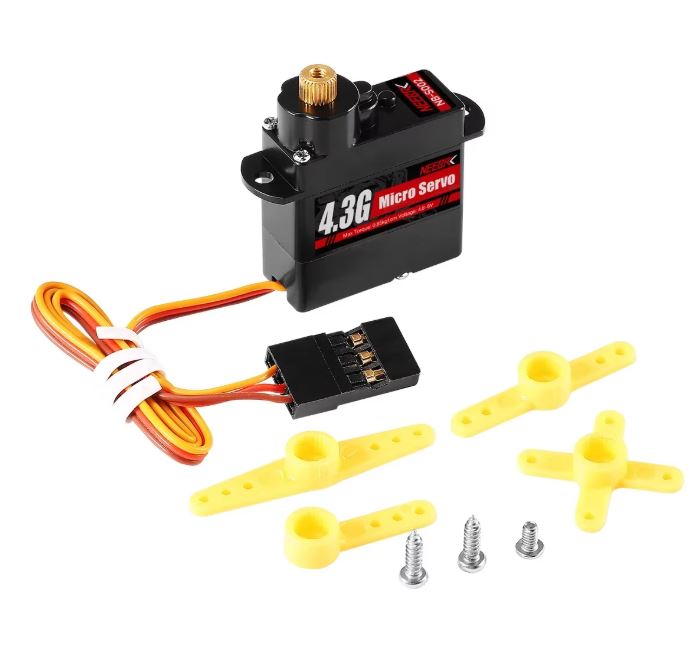

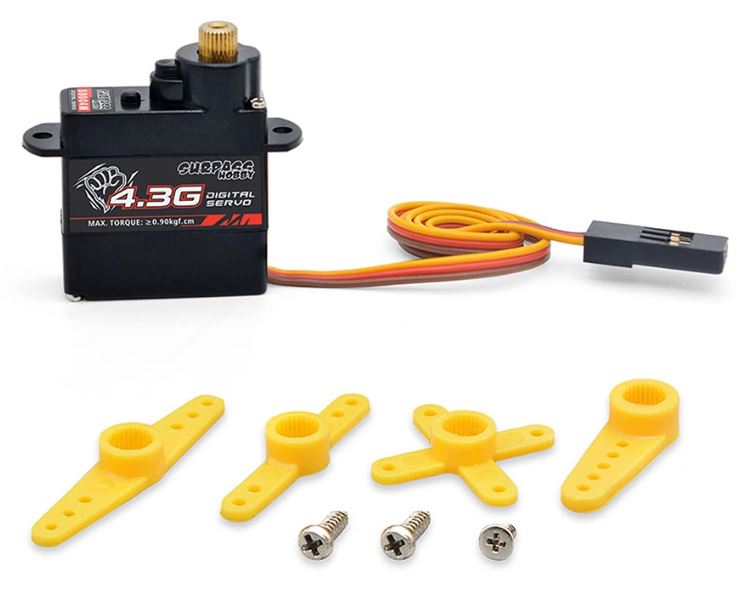

The 4.3gm servo weighs approx. 5.8 gms including the wire and standard connector. Supplied with four plastic servo arms and mounting screws. (you may simply glue the servo onto the model if you prefer)

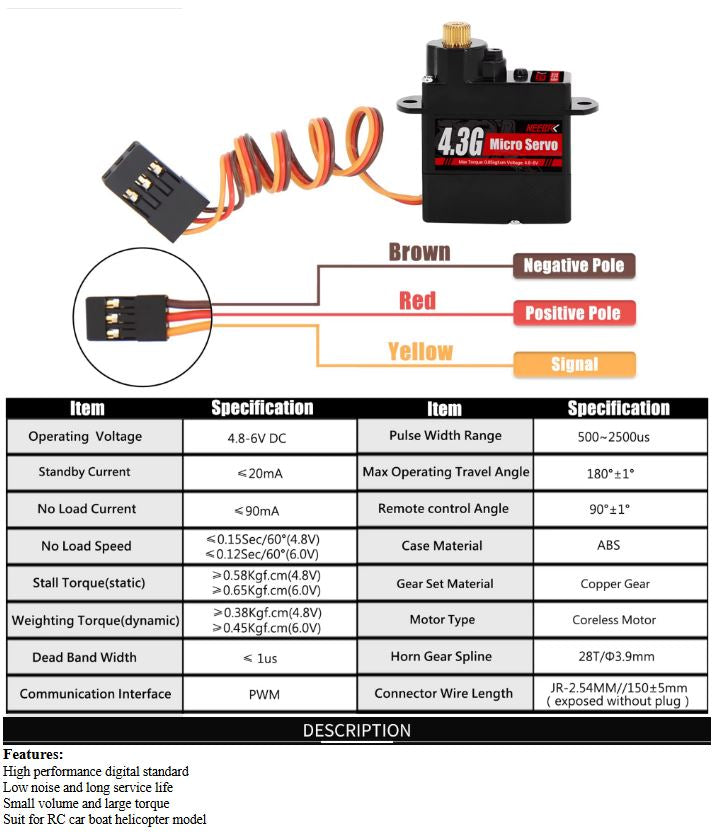

SPECIFICATIONS:

 This product is in stock under more than one name brand label) - Surpass Hobby part# S0004M or Neebrc/DSPower part# N1043M - they are identical.    The plastic gear version N1043 is the same except for the output gear, so its not for heavy-duty applications like landing gear retracts, etc.

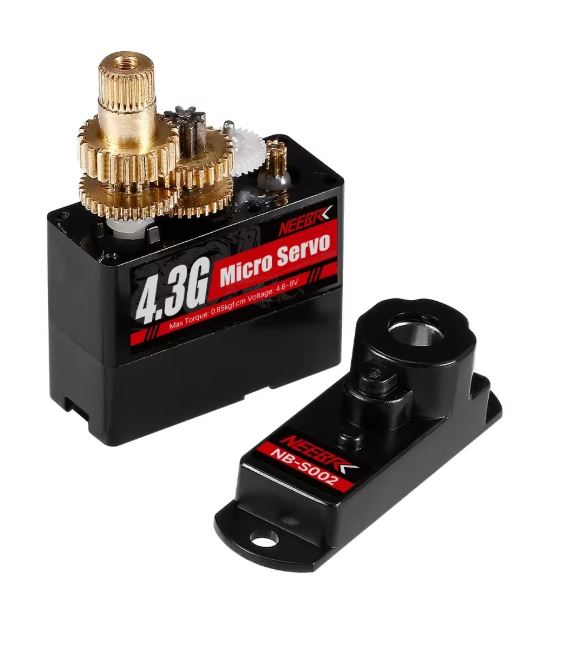

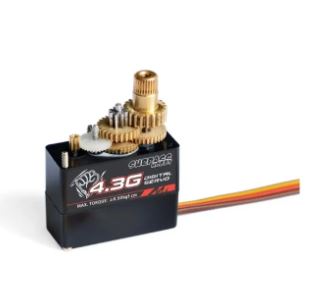

• Brass output gears
• Voltage: 4.8-6.0V DC
• Torque: ≥0.65kgf·cm at 6.0V
• Speed: ≤0.12sec/60° at 6.0V
• Operating Angle: 90°±10°
• Mechanical limit Angle: 360°
• Weight: 5.8± 0.2g
• Size: 20.2x8.5 x24.1mm
• Shell material: ABS
• Motor type: coreless

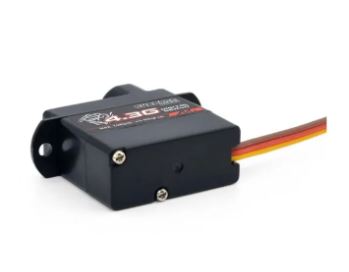

FYI: The two halves of the servo's plastic outer case are held together by micro-size screws, not by a plastic band.
