17gm DIGITAL MINI SERVO METAL GEAR

17gm DIGITAL MINI SERVO METAL GEAR

Regular price $12.95 USD
Regular price Sale price $12.95 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
 More payment options

This mini metal-gear servo is appropriate for small RC models where extra strength is needed - such as aircraft direct-connect retracts and nose-gear steering for aircraft and RC cars. This is physically larger than our other small servos, but it has more power (torque).

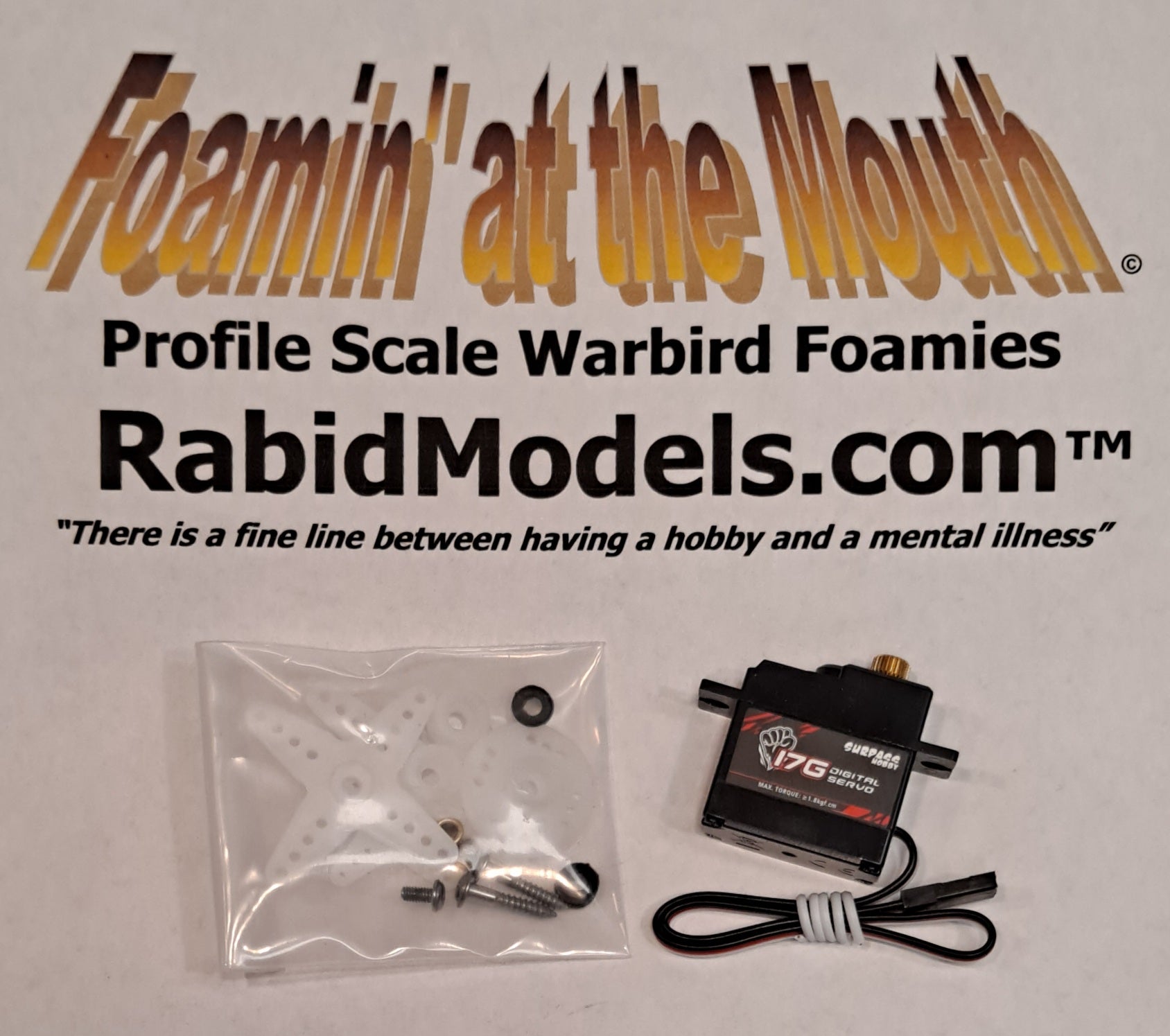

This servo weighs approx. 17 grams (13.5 gm including the wire and connector). Supplied with plastic servo arms and mounting screws.

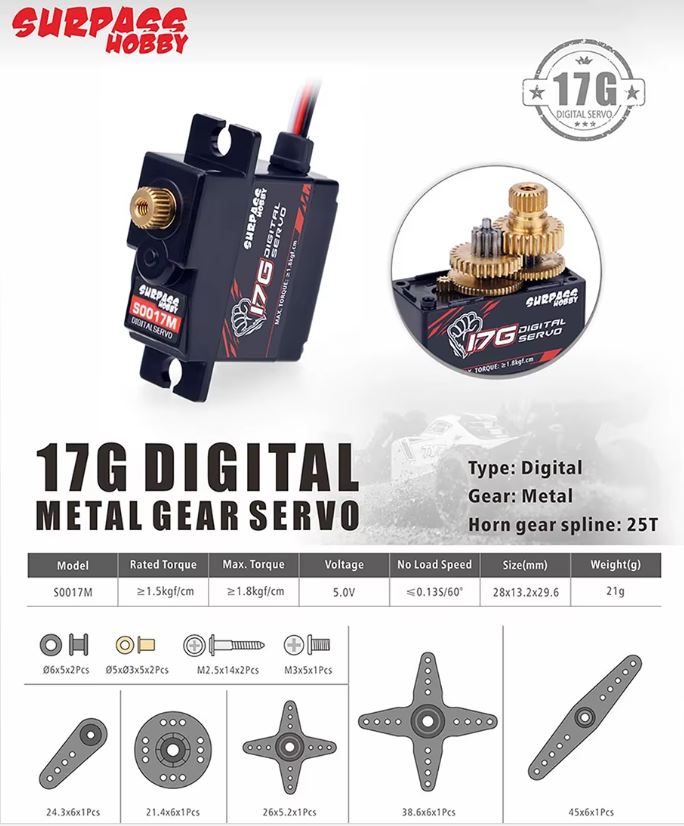

SPECIFICATIONS:

Brand: Surpass Hobby part# S0017M (metal gear)
Torque: 1.5 kgf.cm at 4.8V; 1.8 kgf.cm at 6V;
No load speed: 0.13s/60 degree at 4.8V
Product weight: 17g - 21gm with wire
Outside dimension: 28 x 13.2 x 29.6mm (1.1 x 0.52 x 1.2inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520 μ s / 333hz;


FYI: The two halves of the servo's plastic outer case are held together by micro-size screws, not by a plastic band. Wire has universal connector.
