3D-printed wheels for the Fun Scale Models HANRIOT biplane

The Fun-Scale Models 30" Hanriot HD-1 is an excellent model and we are producing the 3D-printed 2 1/4" tire and hub that Derek has designed specifically for it.

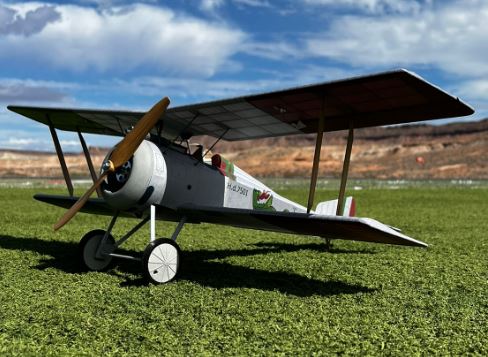

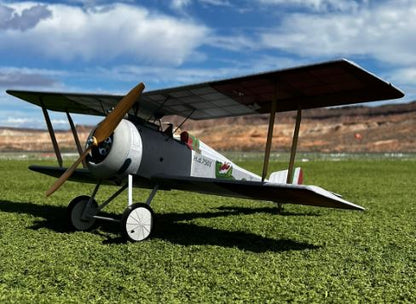

Here's Derek's prototype with the custom wheels installed!  The "Fun Scale Models" Hanriot HD-1 Park-flyer will be offered soon as a laser-cut short kit by Manzano Lazer works.  (link to be added here)

SPECIFICATIONS:

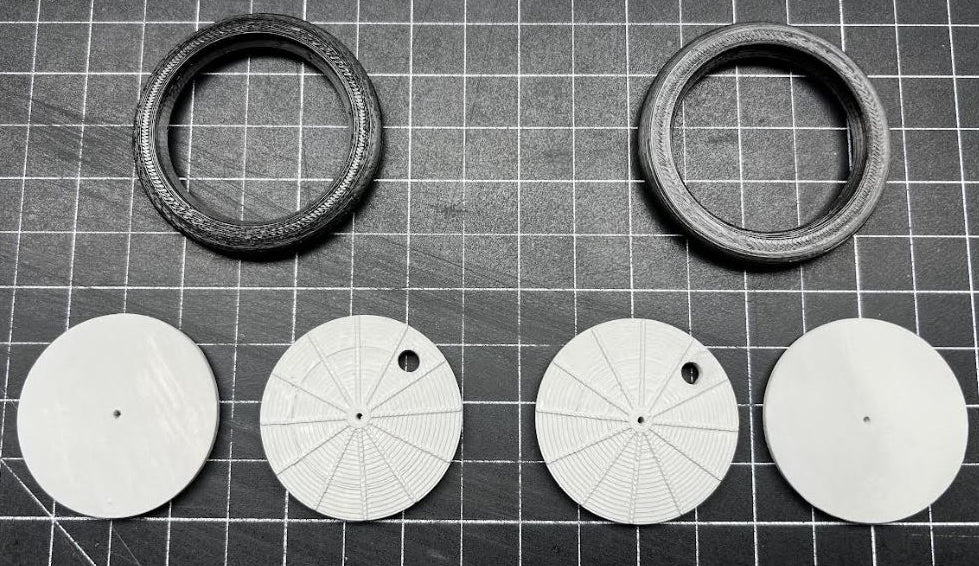

TIRE: black flexible (hollow) TPU - 2.25" diameter x 0.3" wide.  Weight: 4 gms

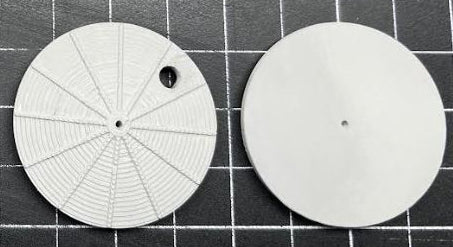

WHEEL HUB SET: white PETG.   Diameter 1.73 inches, total width at the axle: 0.45". The 2 hub halves make one wheel hub, total weight 8 gms. The hubs are not painted. Note: the outside hub has the detail shown, the inside hub is completely flat.

One completed wheel weighs about 12 gms (about 1/2 oz).

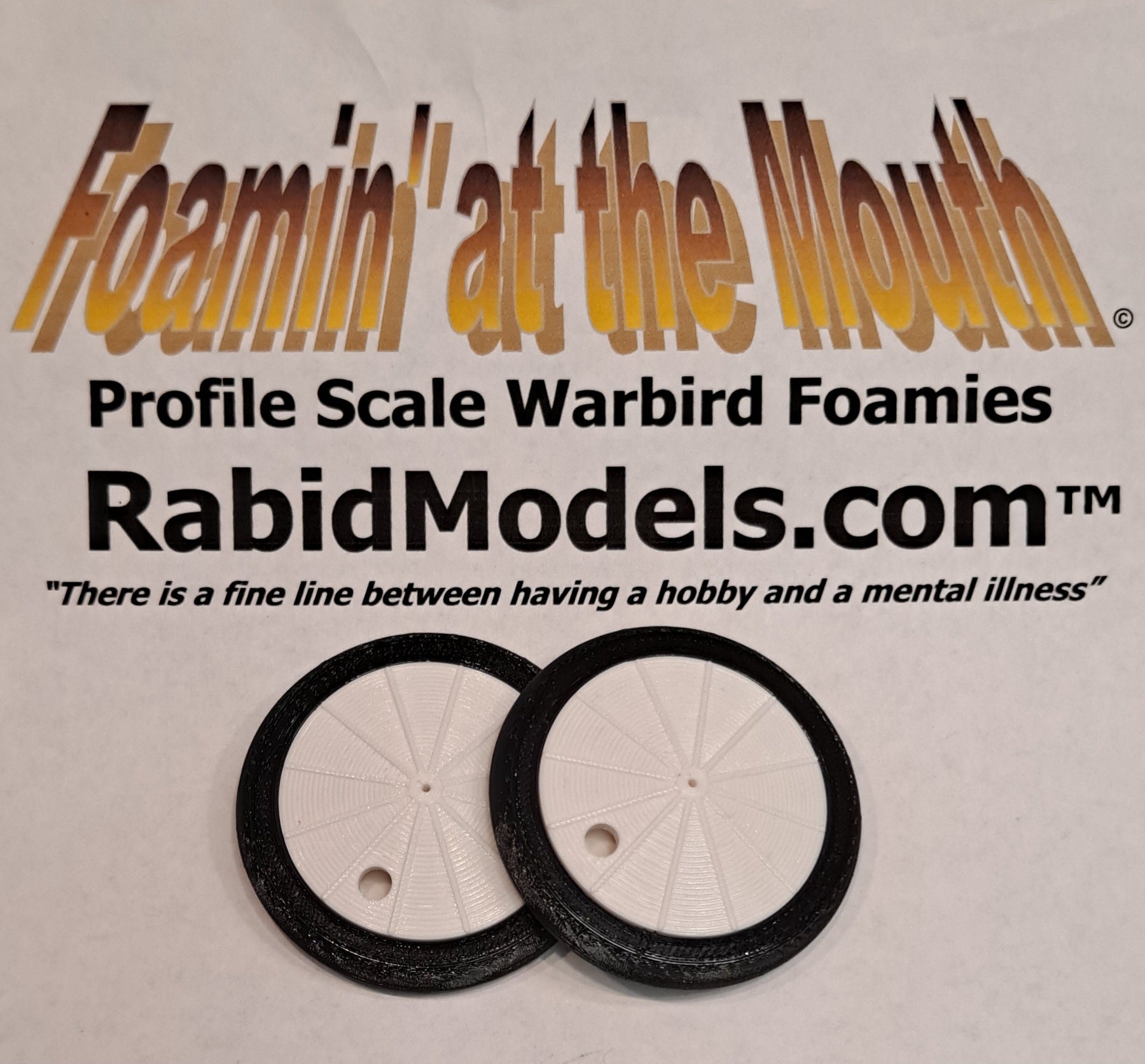

Sold as a complete set of 2 wheels, or as separate spare parts.

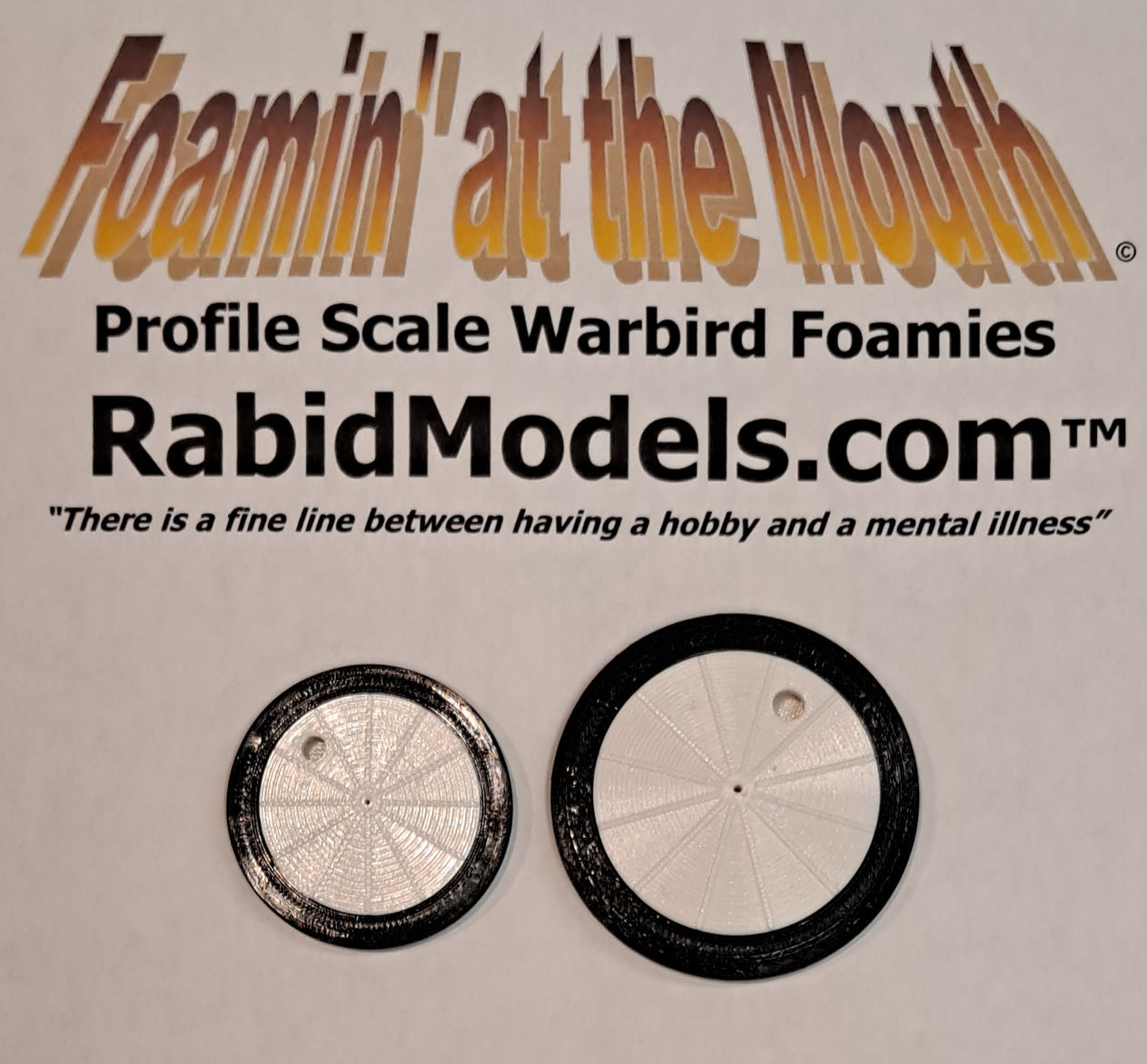

Note: These wheels can be manufactured in other sizes (larger or smaller) to fit other models. For example if you need these wheels to be 2" diameter, or 1.5" diameter, we can do that - contact us for details.

3D-printed parts are unpainted but require very little preparation - they can be painted with any plastic-compatible paint. Painting is recommended because all plastics will deteriorate over time if exposed to sunlight. The wheel hubs can be glued together with CA or Foam-Tac cement. The two hub halves are designed to be glued onto the wheel and have starter holes for the axle - carefully drill out the holes to match the axle wire size you are using.
