9gm 1504 brushless motor

The 1504 brushless motor is a small 2800KV outrunner motor manufactured in China.  This is a popular motor often used on small drones but can also be used on R/C model aircraft.   1S-2S power.

Similar in size to our 10gm brushless motor, but this one is less expensive. It can replace the brushed IPS motors that we used in our original 28" Rabid Models aircraft (for a big jump up in performance with a 2S battery).

Specifications:

• Weight: 9g
• Shaft length: 5mm
• Shaft diameter: 2.0mm
• Outer diameter: 18mm
• KV: 2800KV
• Test data: 154g thrust with 6x3 propeller, 5.82A at 7.32V on 2S lipo battery

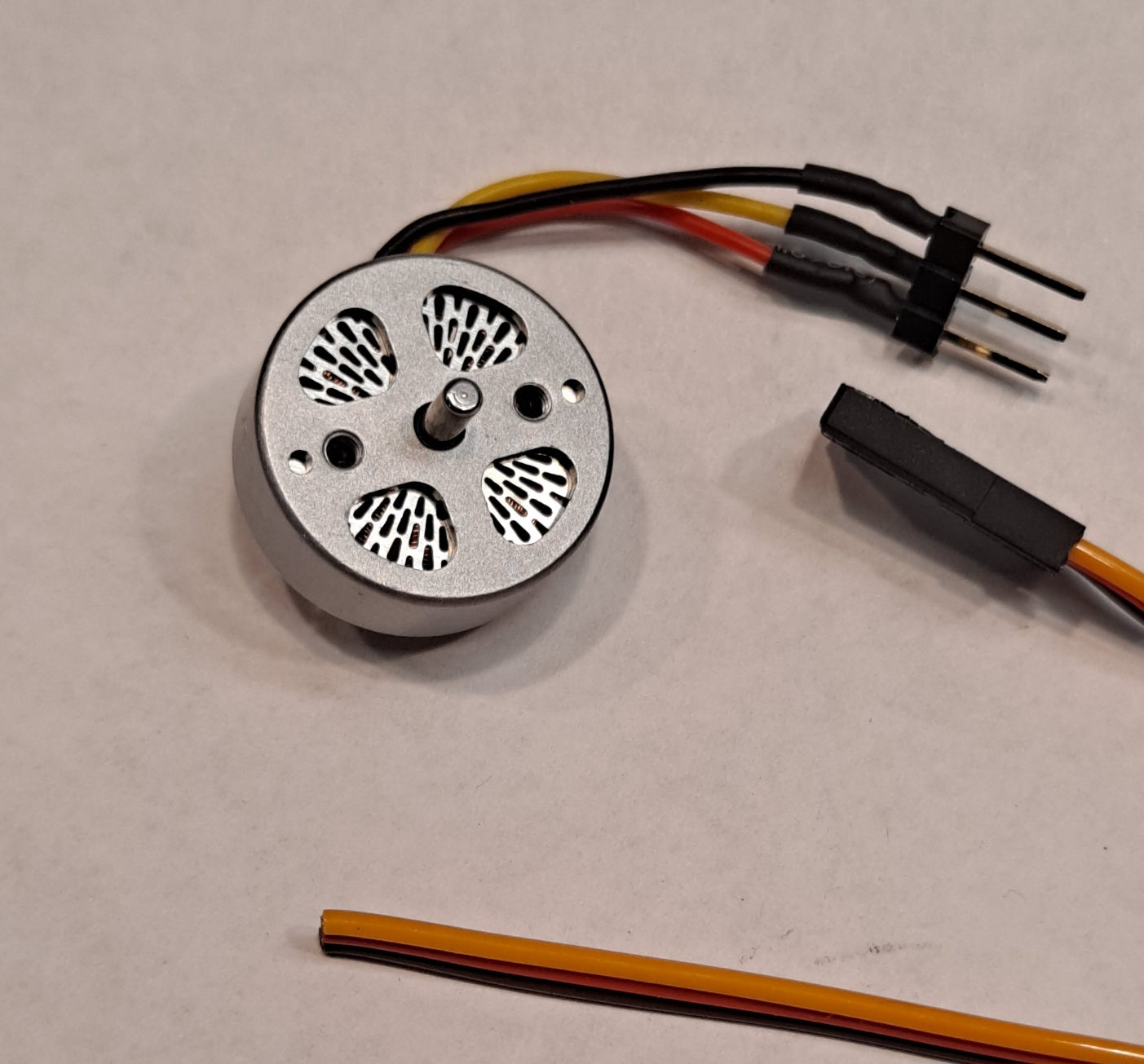

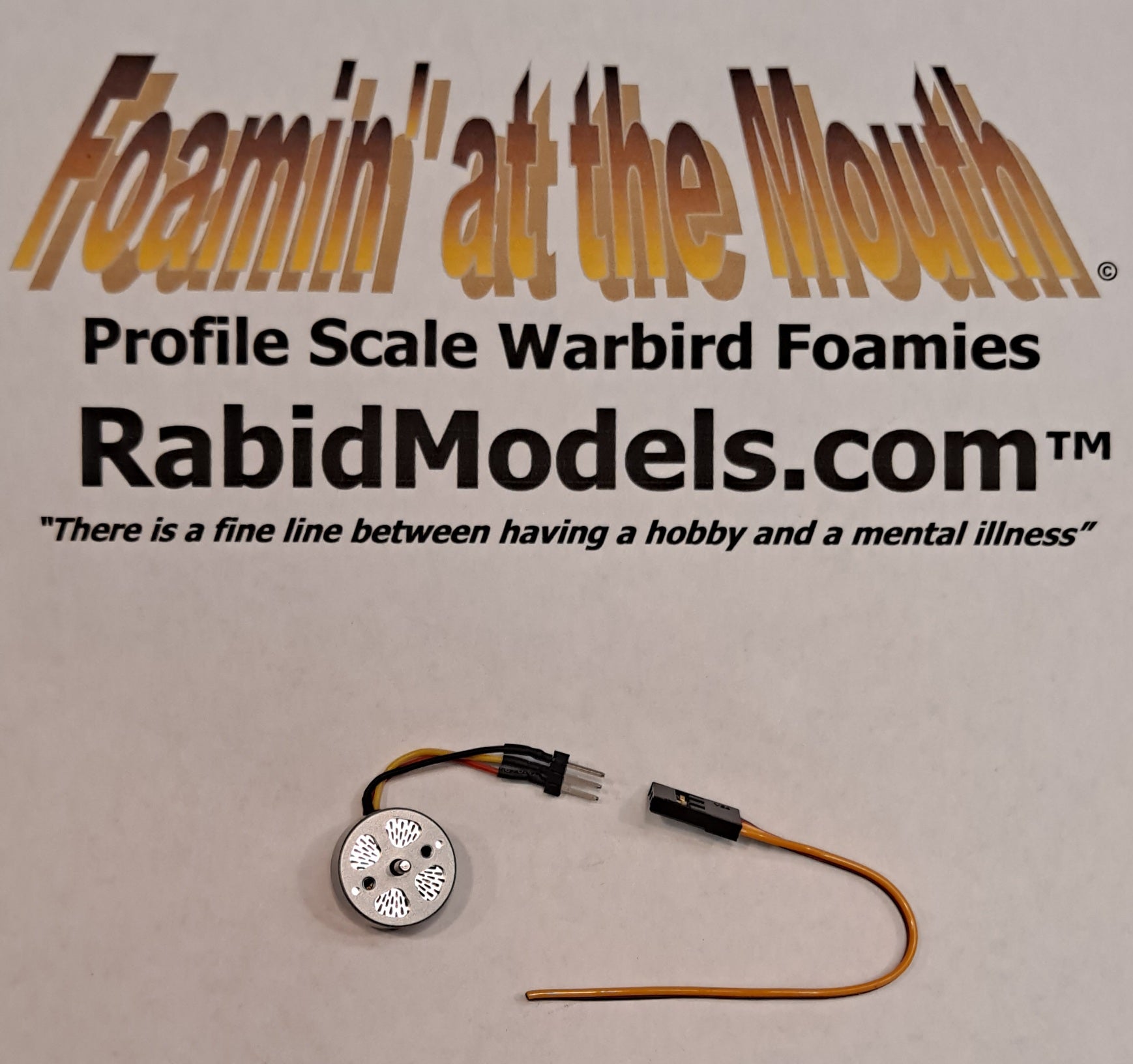

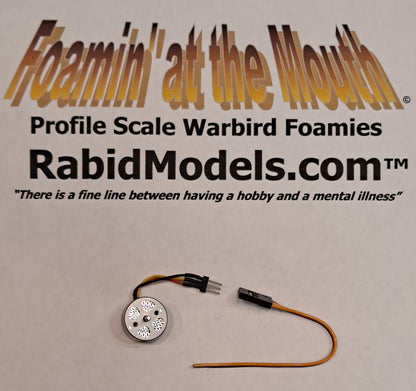

The package includes:  one 9gm 1504 brushless motor with mount, and a wire with disconnect plug.  The motor mount is tapped for 2mm machine screws. You will need a firewall and screws, bullet connectors, a prop adapter or prop saver (for 2mm shaft), and an 1S-2S ESC. We sell most of these items separately.   (here is the link to our ultra-small ESC)
