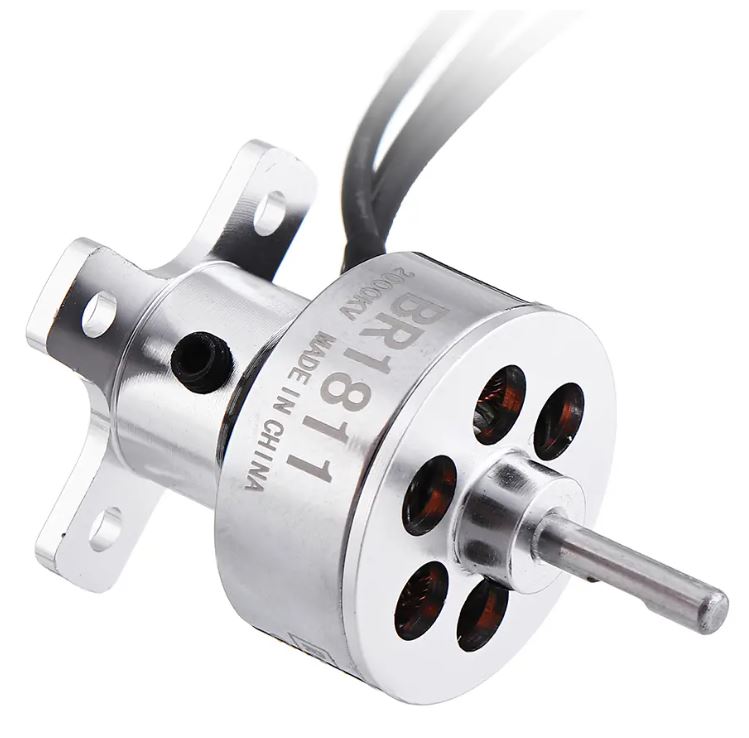

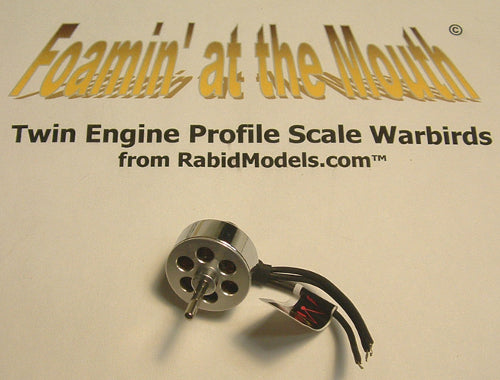

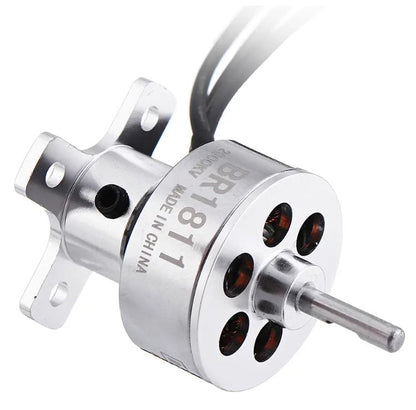

10gm 2000kv brushless motor

The 10gm 2000kv brushless motor (also called 1811) is a really excellent little motor that can handle a variety of props and can be used with 1S, 2S, or 3S Lipo batteries. Typical propeller when used with a 3S battery is a 2-blade 6x3 or a 3-blade 5x4. This motor is rated at 150gm of thrust with the 6x3 propeller at 4 amps.

For the Rabid Models 28" twin-engine models that we sell, we use a 3-bladed 5x3 or 5x4 propeller (the 5" diameter propeller is close to the correct scale size). For the Rabid Models "Mini-Komet" ME163 we use a 3S battery and 4x4 propeller for the best performance. Rabid Models offers several propellers in our catalog.

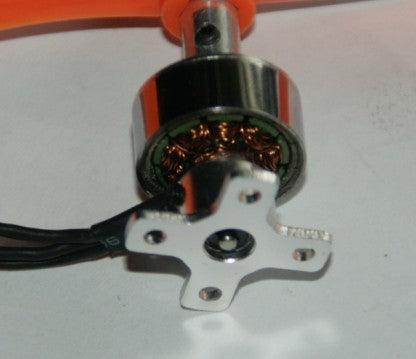

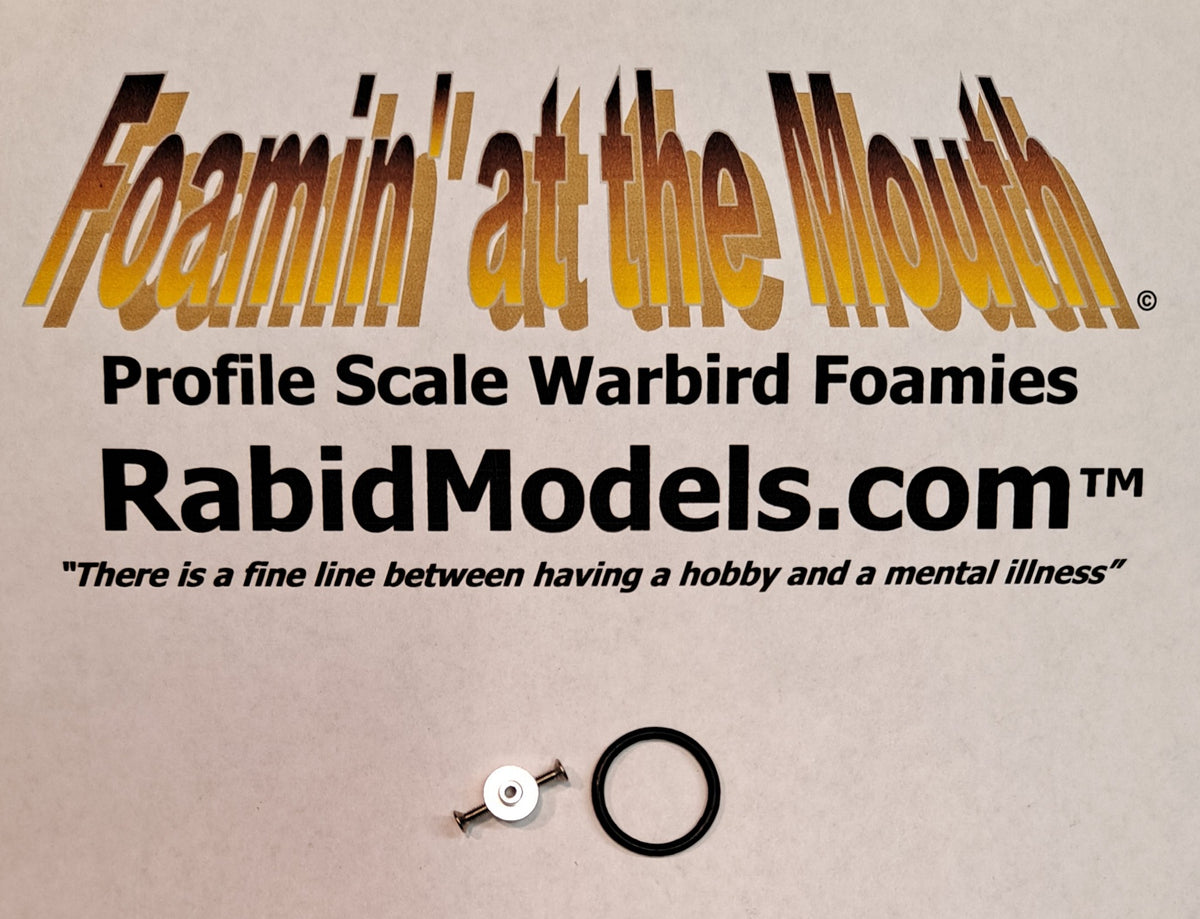

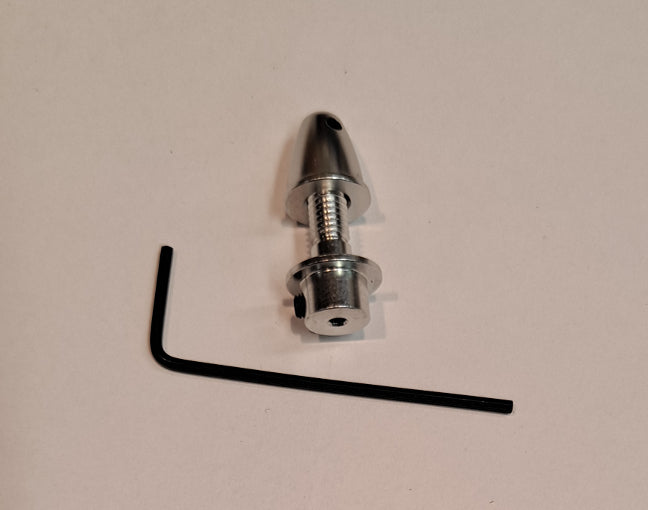

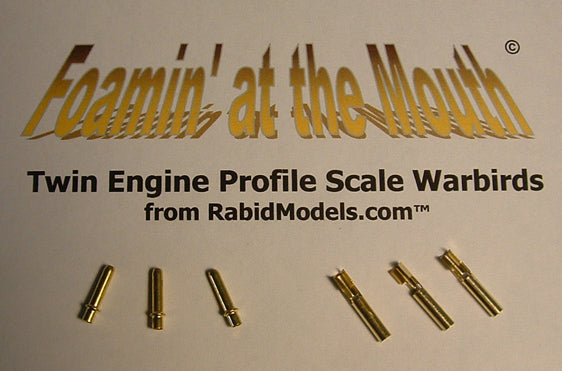

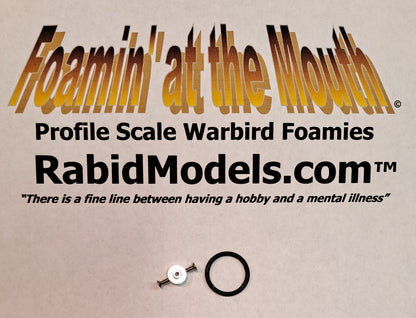

The aluminum motor mount is included with the motor - and the motor has 2mm male bullet connectors. You'll need a suitable propeller, with a prop adapter or O-ring propsaver, and a plywood firewall. (These are not included but sold separately) The motor shaft diameter is 2.0mm. For best results we strongly recommend using a removeable "threadlocker" compound on the tiny grub screws that hold the motor to the mount.

As with all brushless motors, a brushless ESC is required (available separately).  The direction of rotation can be reversed by switching any 2 of the 3 motor leads.

We offer several custom-designed 3D-printed spinners for our models which fit this motor and our 3-bladed props, please refer to our catalog.
