CA EDGE HINGE Slot cutting jig FOR BALSA - by Pat Tritle

CA EDGE HINGE Slot cutting jig FOR BALSA - by Pat Tritle

Regular price $2.00 USD
Regular price Sale price $2.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
select type
 More payment options

This handy 3D-printed tool is specifically made for installing CA hinges in small balsa models - close to the edge of the control surface. Its really hard to do a precise job with a knife blade but the tool makes it easy and safe. Pat Tritle's original design was made from scrap balsa in his workshop and he suggested that we could offer this 3D-printed tool to modelers.

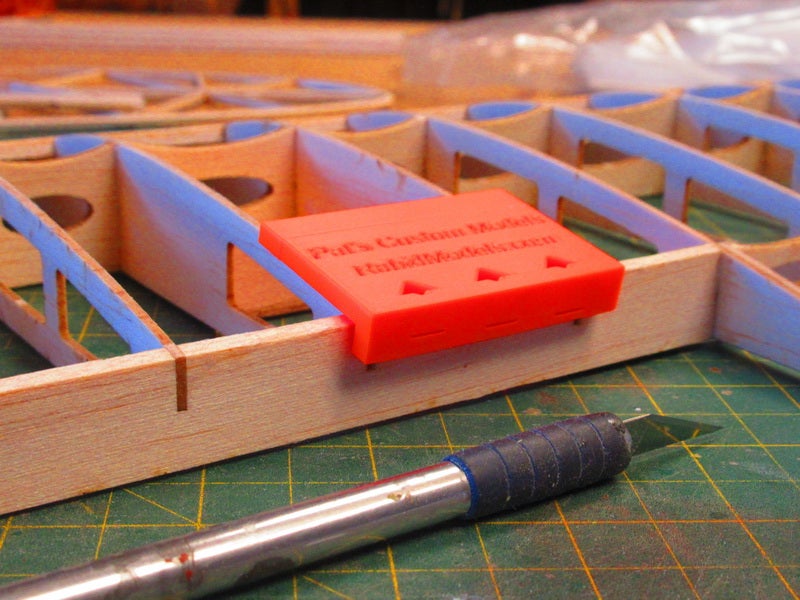

The tool guides the knife blade to make slots for CA hinges - see the red lines in the picture below.  The tool has THREE slots to set the hinge 1/16", 3/32", or 1/8" from the edge depending on which slot you use. Use a felt-tip pen to make centering tickmarks on the edge of the balsa and the three small "viewports" on the tool will guide your work.

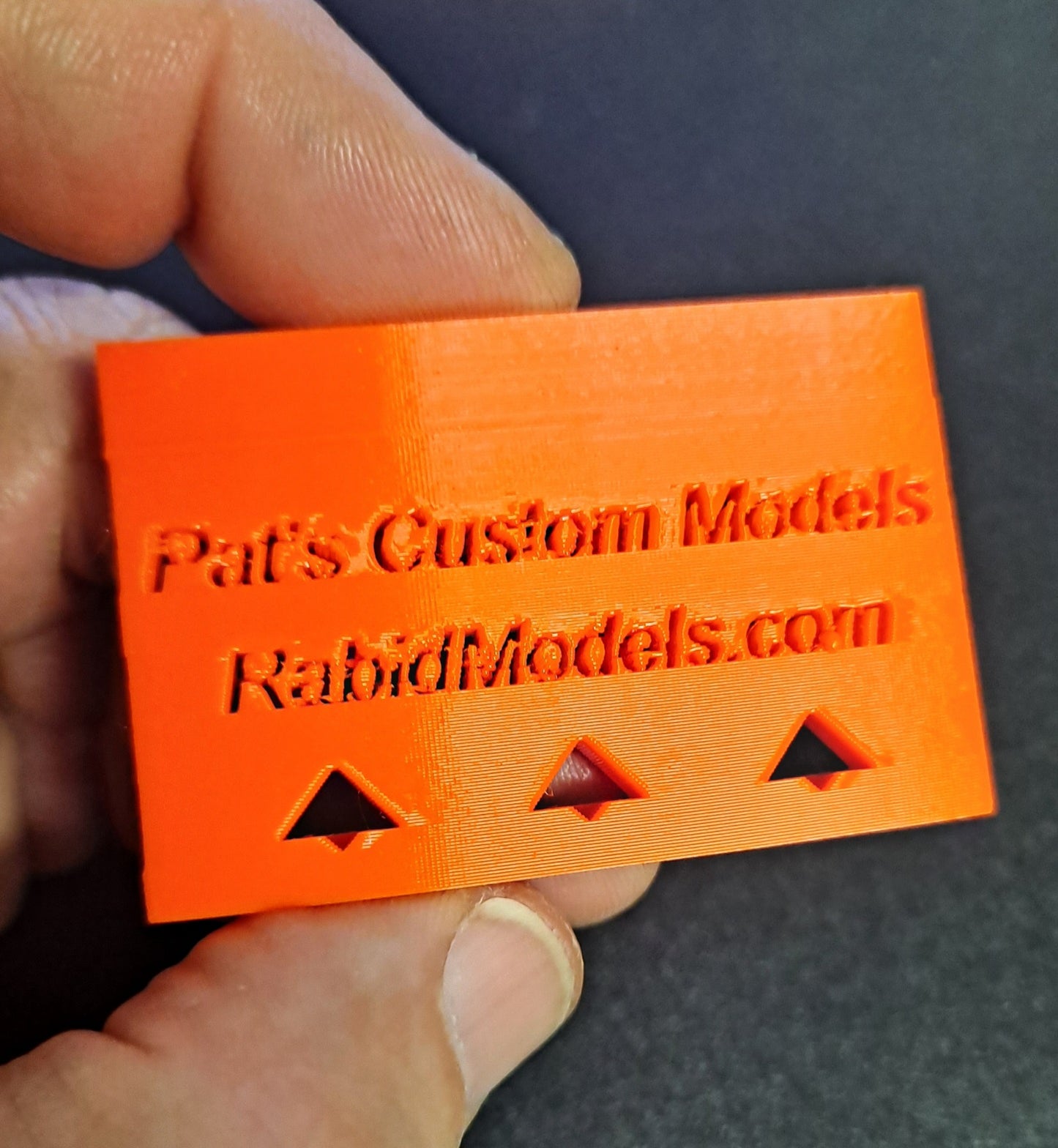

V2 - 1.5" size is for relatively thin ailerons up to about 1" wide

V3 - 2.25" size is for larger ailerons up to about 2" wide

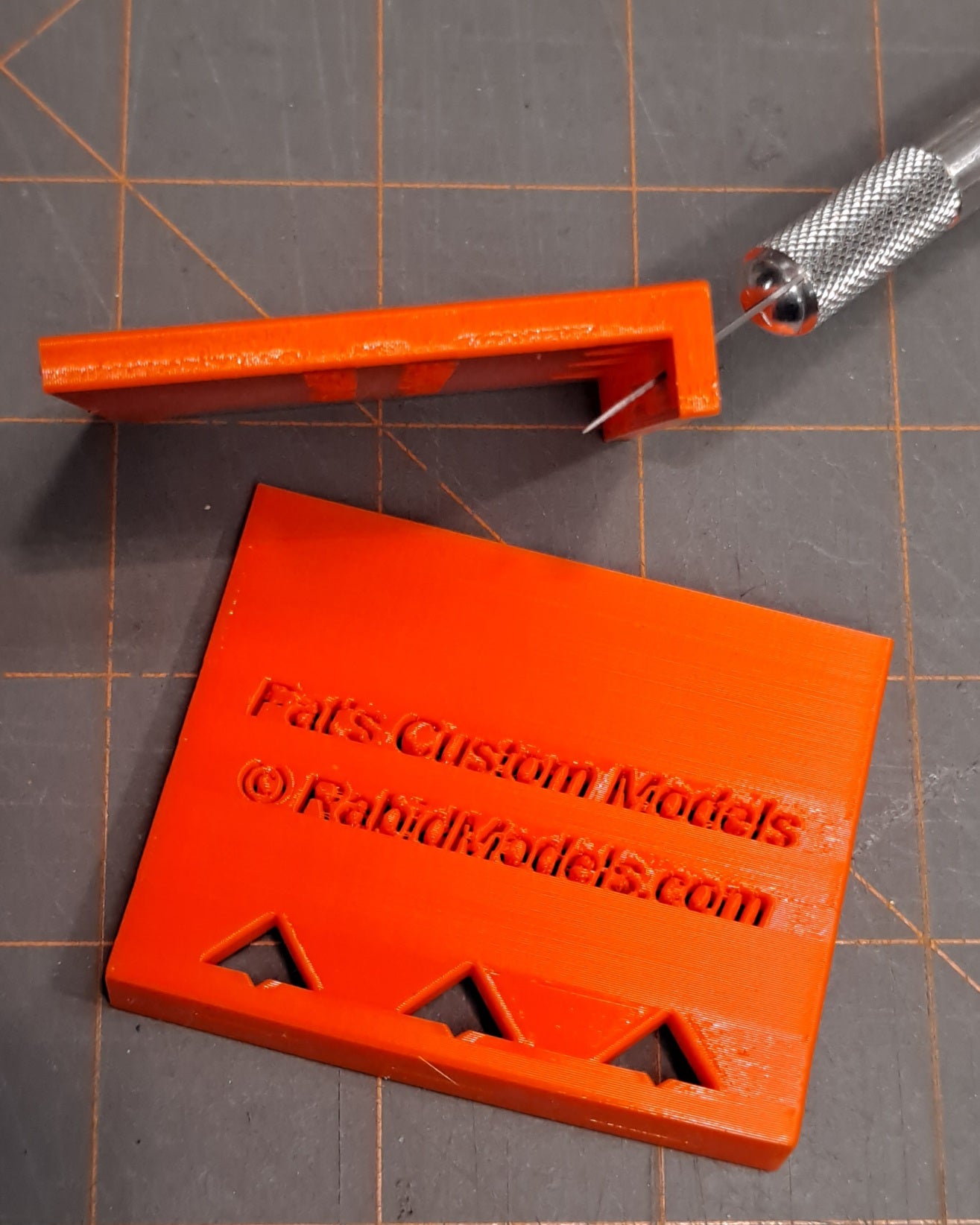

V4 - 2.25" size with 15-degree and 30-degree angled blade slots - please see the drawing below.

Each version is available in TWO types - one has knife slots for Scalpel blades and the other is for standard #11 hobby blades.

Material: 3D-printed PETG Plastic

NOTE: This product was originally designed by Rabid Models and Pat Tritle (Pat's Custom Models), Made in the USA, Copyright © 2024. This tool can be made in a number of custom variations - for example the knife slot can be angled or placed in other positions. Contact us for details.  This drawing of the V2 model is by Pat Tritle.


We have a special variant, called V4 - this is a set of TWO tools which have angled slots.  One has a 15-degree down angle and the other has a 30-degree down angle, this is for a secure installation for larger models using balsa "backing blocks" as you see in this drawing here - the blades are in red and the blocks are in green:
