eMAX CF2822 1200kv Outrunner brushless motor

eMAX CF2822 1200kv Outrunner brushless motor

Regular price $15.00 USD
Regular price $18.00 USD Sale price $15.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

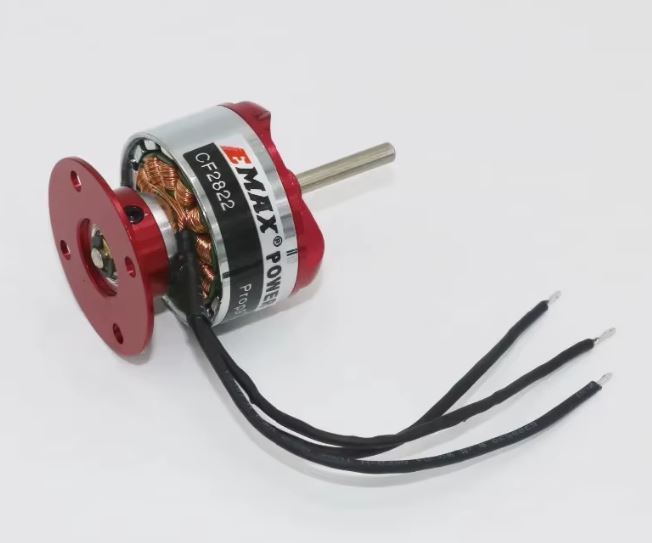

The eMax CF2822 is a high-quality "outrunner" brushless motor (rotating case), suitable for aircraft models of 1 - 1.5 lbs.  CNC-machined for smooth running, with high-temperature carbon-steel bearings.    For use with 2S-3S power systems.

This motor is significantly heavier than our "blue wonder" motor, the main difference being that it can handle larger propellers and twice the amperage (up to 16 amps).

Motor Specifications:

Max. efficiency: 82%            Max. efficiency current: 7-16amps (>75%)
No load current/10V: 0.9A         Current capacity: 16A/60s
Internal Resistance: 150mohm
Stator Dimensions: 22 x 10mm   Shaft diameter: 3mm

Recommended 2-blade prop examples: APC 7x6, APC 8x3.8, APC 9x4.5, APC 10x5

3-blade propeller examples:  9.5x7, 10x6

Item weight: 43g (including mount)      Size: 3cm x 4.8cm (Diameter x Length)

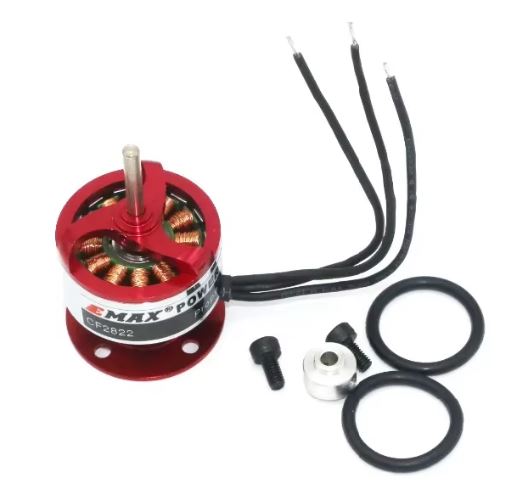

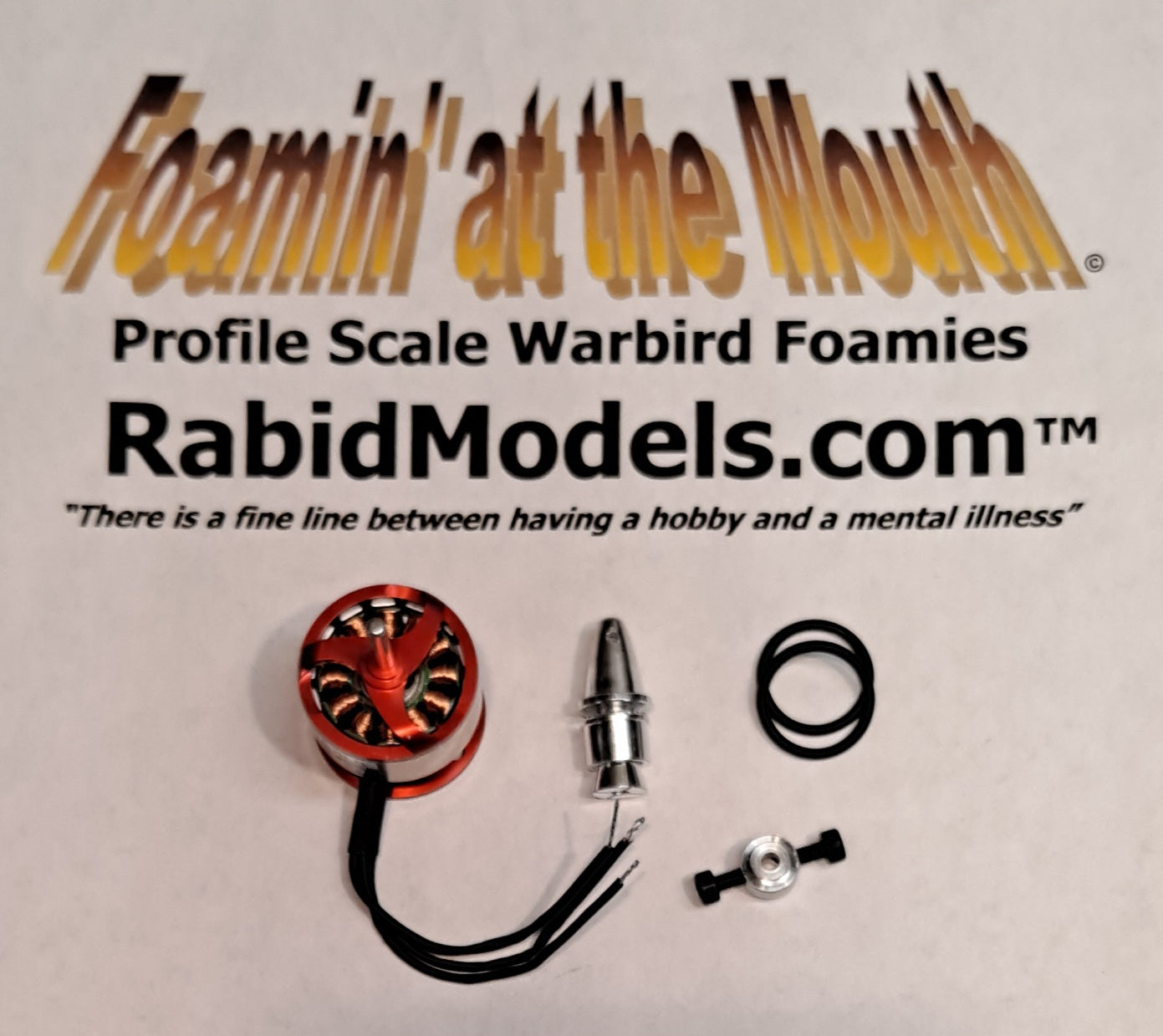

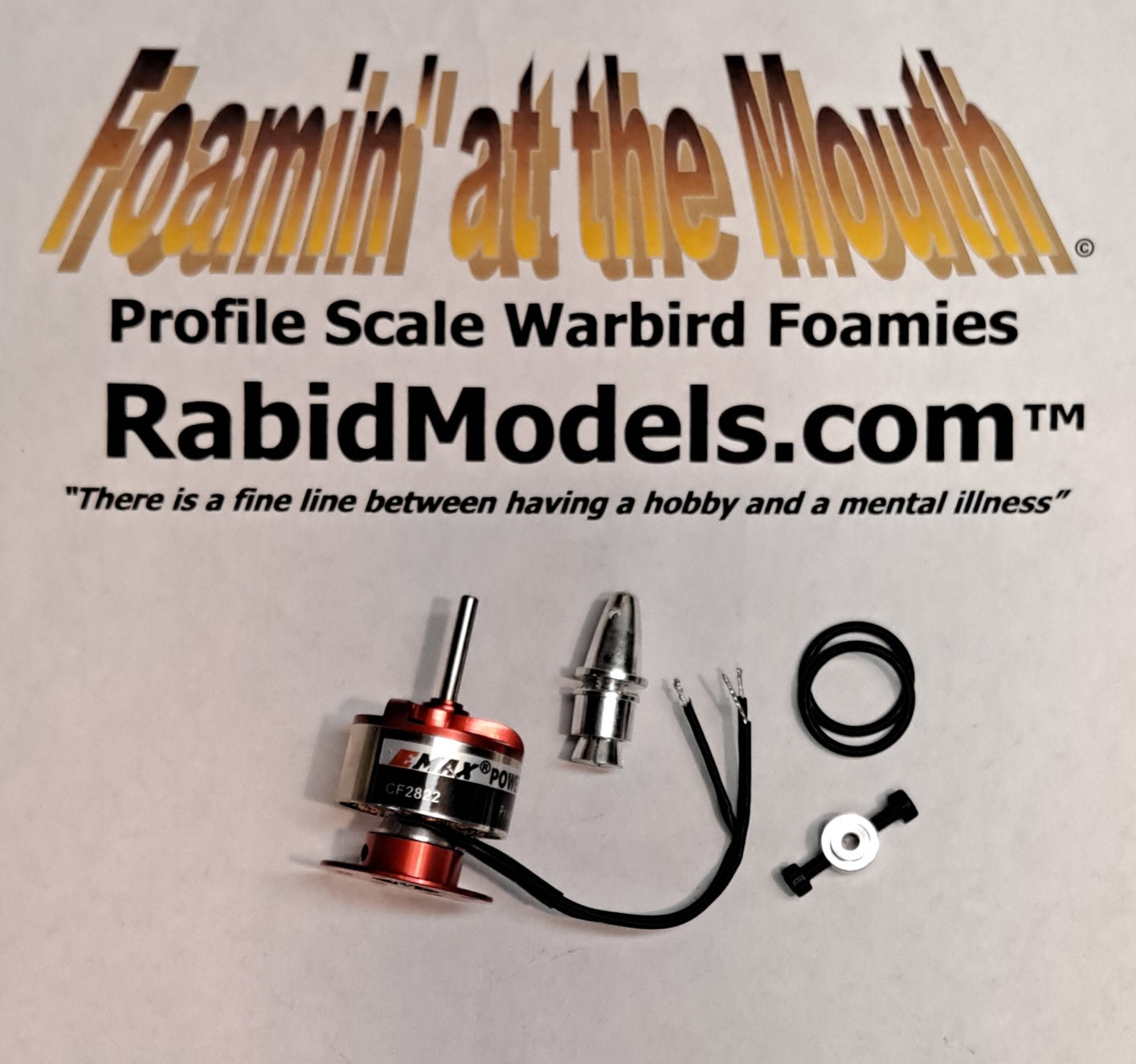

The motor is supplied with the aluminum motor mount, a prop adapter, and a propsaver propeller mount as shown in the pictures.  You'll need "bullet" connectors, a 20-amp ESC (which we sell separately, click here) and a suitable propeller. You will also need some kind of "firewall" to mount the motor, such as a 1.5" diameter piece of 1/8" plywood.

We offer several custom-designed 3D-printed spinners specifically designed for the 3-bladed props in varieties appropriate for our models.
