3.7gm Micro Servo (plastic gear)
3.7gm Micro Servo (plastic gear)
Regular price
$6.00 USD
Regular price
Sale price
$6.00 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

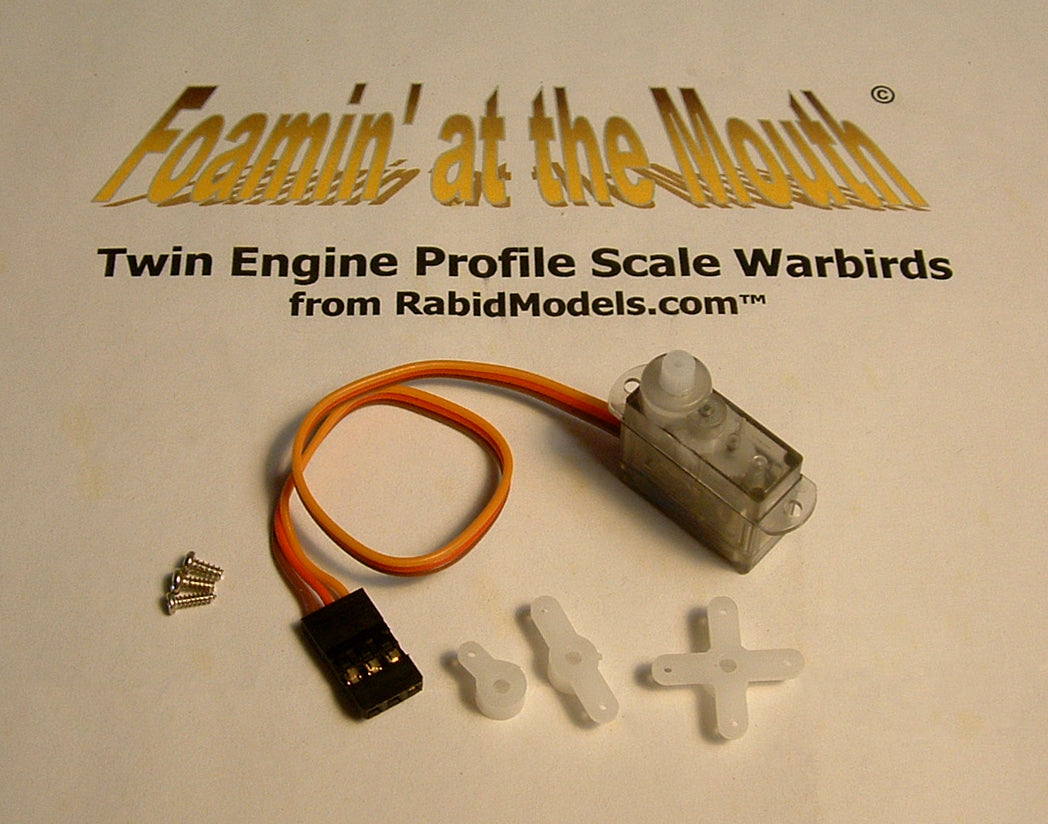

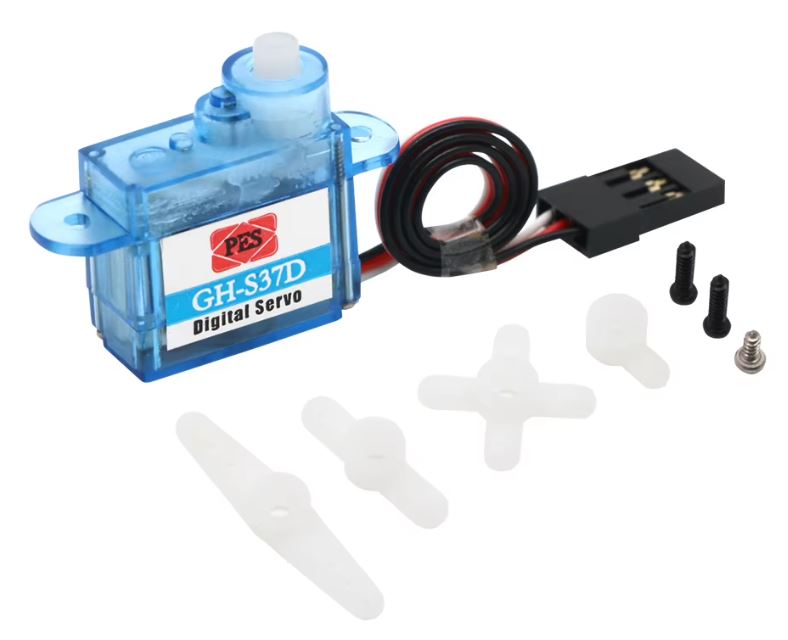

This inexpensive small servo performs very well with small RC models, the main advantage being that it is lightweight. It has plastic gears and weighs approx. 3.7 grams not including the wire and connector. (5.0 grams with the wire and connector.) It comes with an assortment of servo arms and mounting screws. (typically, we simply glue it onto the model)

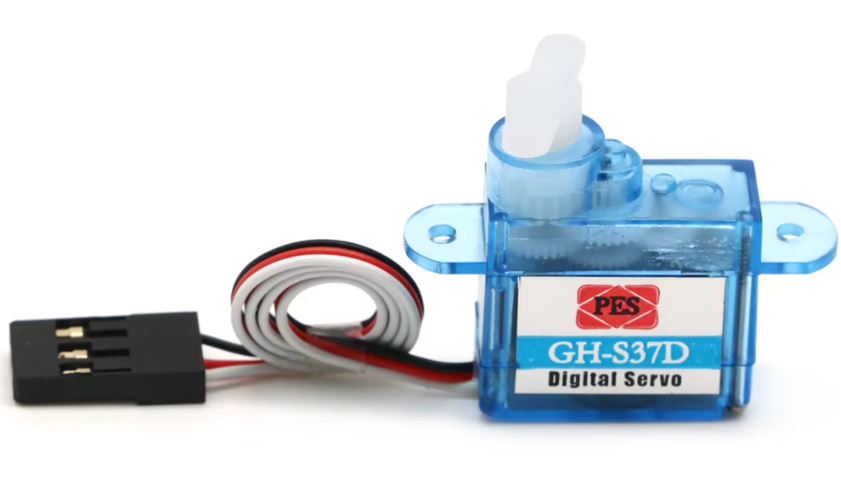

MEASUREMENTS: The rectangular part of the servo case measures 17mm tall, 20mm long, 8.75mm wide - not including the mounting lugs and the output gear. The overall measurements are 30.4mm long and 26mm high. Please see the drawing below. (The color of the plastic case may vary from the picture).
Operating speed (no load): 0.15 Sec/60° 0.1 Sec/60°
Running current (no load):≤ 10 m A ≤40 m A
Stall torque: 0.42±0.1 kg-cm 0.6±0.1 kg-cm
Stall current: ≤60 m A ≤200 m A
Weight: 3.7gm
Dimensions: 20.0mm x 8.75mm x 22.0 mm
Torque: 0.5kg/cm (at 3.6V), 0.7kg/cm (at 4.8V)
Speed: 0.13sec/60° (at 4.8V), 0.10sec/60° (at 6V)
Motor type: hollow cup
Gear type: plastic
Working voltage: 3.6v-4.8v
Working angle: 90°
Wire length: 150mm (about 6 inches)
Running current (no load):≤ 10 m A ≤40 m A
Stall torque: 0.42±0.1 kg-cm 0.6±0.1 kg-cm
Stall current: ≤60 m A ≤200 m A
Weight: 3.7gm
Dimensions: 20.0mm x 8.75mm x 22.0 mm
Torque: 0.5kg/cm (at 3.6V), 0.7kg/cm (at 4.8V)
Speed: 0.13sec/60° (at 4.8V), 0.10sec/60° (at 6V)
Motor type: hollow cup
Gear type: plastic
Working voltage: 3.6v-4.8v
Working angle: 90°
Wire length: 150mm (about 6 inches)
