2 Micro Servo Connectors with setscrew

2 Micro Servo Connectors with setscrew

Regular price $1.75 USD
Regular price Sale price $1.75 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

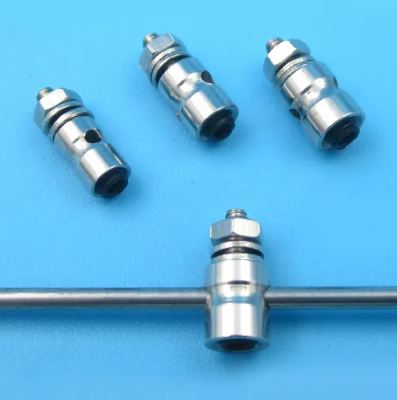

This is a VERY small metal connector for attaching pushrods to the servo arm. Perfect for small servos but will work on any servo.

TWO connectors are included in the package!

Lots of places sell small connectors. But THESE are fairly unique!  Please note these special features:

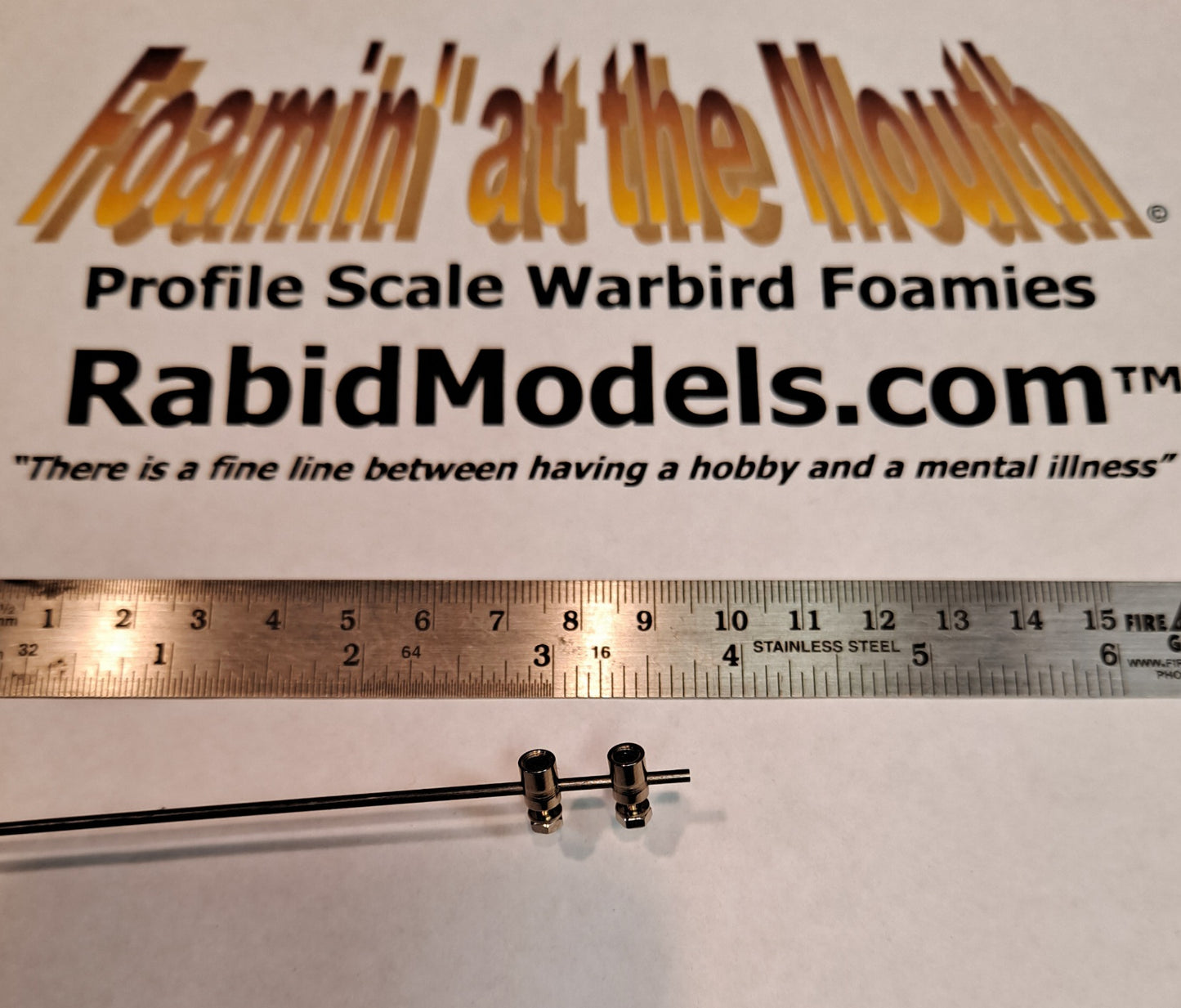

  • Small size - only 11mm tall (about 7/16") with the screw all the way in.
  • Uses a recessed set screw instead of a protruding screw head, for security and lower profile
  • For CF or music-wire pushrods from 1.5mm up to 1.8mm diameter (1/16 inch)
  • Each one weighs less than 1 gram (0.75gm)

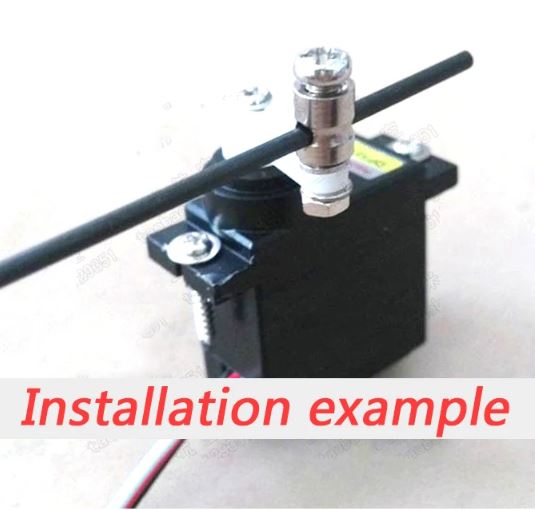

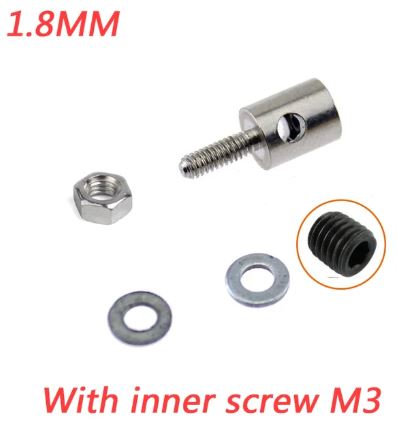

The setscrew allows you to easily adjust the length of the pushrod - no "Z bend" needed. The connector is attached to the servo arm with a metal nut and there are two washers that must be installed (see the pictures for reference) - the washers allow the connector to rotate. Note: you'll need to ensure that the hole in the servo arm is enlarged just enough to allow the threads to move freely, so the connector can rotate.

After installation, put a small dab of removable glue on the nut. to make sure it doesn't come off (Foam-Tac is perfect for this).

NOTE: an "allen wrench" is not included with this. The size required is 1.5mm

This thing is SO tiny - its really hard to hold!  I strongly recommend that you have a towel on your workbench to help if this falls out of your hands! Ask me why I know!!

This connector has a specific use on some of Derek Micko's Fun Scale Models designs - where he has connected the landing-gear leg directly to a servo arm using two of these connectors.  This idea means that you don't have to purchase specialized retract units. You can see them in action on Derek's Do335 and P38.
