2.0 gram MICRO DIGITAL SERVO - plastic gear

This very small digital micro servo is only about the size of a thumbnail! Its perfect for small models. This plastic-gear servo is #S0002P manufactured by "Surpass Hobby" (China).

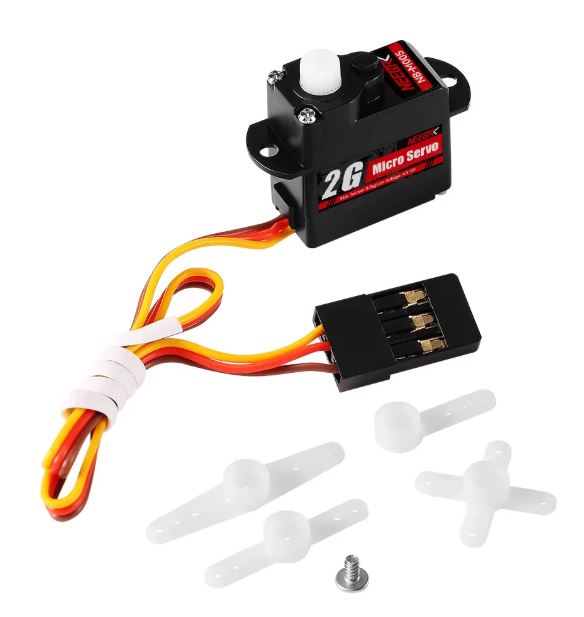

It weighs about 2 grams, not including the wire and connector (3.5 grams with the wire and connector). It comes with four servo arms and two mounting screws. (typically, we simply glue it onto the model)

Specifications:

Voltage: 3.7~4.2V DC

Torque: ≥0.4kgf·cm at 4.2V

Speed: ≤0.06sec/60° at 4.2V

Operating Angle: 180°±10°(500~2500μs)

Mechanical limit Angle: 360°

Weight: 2.2 g

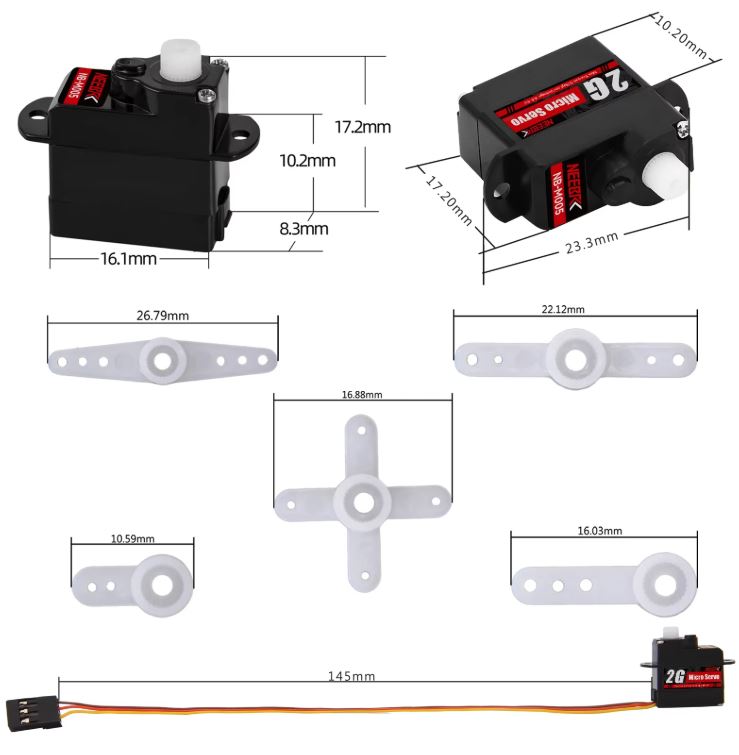

MEASUREMENTS: 16.7 × 8.2 × 17mm

Shell material: ABS

Motor type: coreless

FYI: The two halves of the servo's plastic outer case are held together by micro-size screws, not by a plastic band.
