9gm DIGITAL MICRO SERVO METAL GEAR

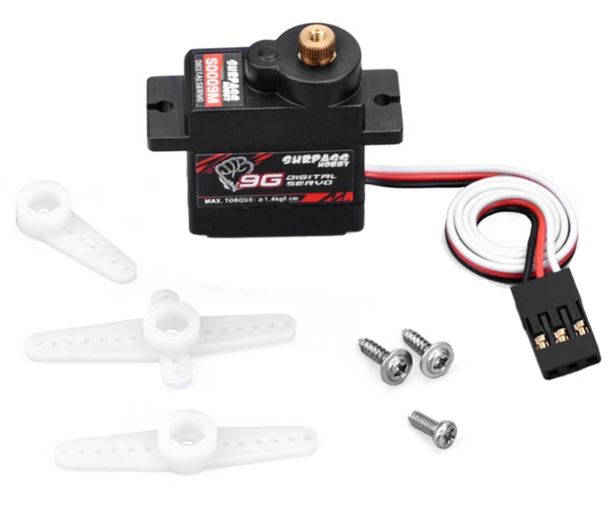

This mini metal-gear servo is appropriate for small RC models where extra strength is needed - such as aircraft direct-connect retracts and nose-gear steering for aircraft and RC cars. The servo weighs approx. 9 grams (13.5 gms including the wire and connector). Supplied with plastic servo arms and mounting screws. (you may simply glue the servo onto the model if you prefer)

SPECIFICATIONS:

Brand: Surpass Hobby part# S0009M
Torque: 1.7 kgf.cm at 4.8V; 1.9 kgf.cm at 6V;
No load speed: 0.11s/60 degree at 4.8V; 0.09s/60 degree at 6V;
Product weight: 13.5g (0.47oz);

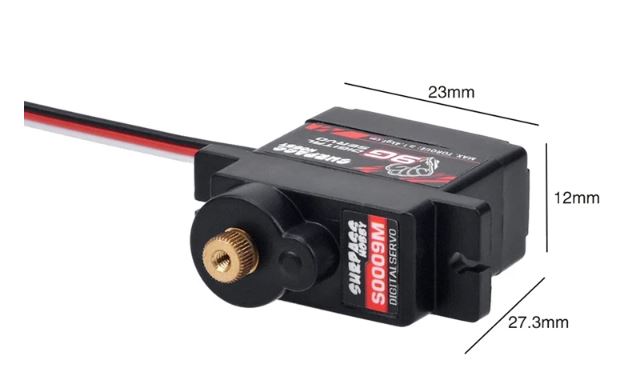

Outside dimension: 23 x 12 x 27.3mm (0.92 x 0.48 x 1.07inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520 μ s / 333hz;

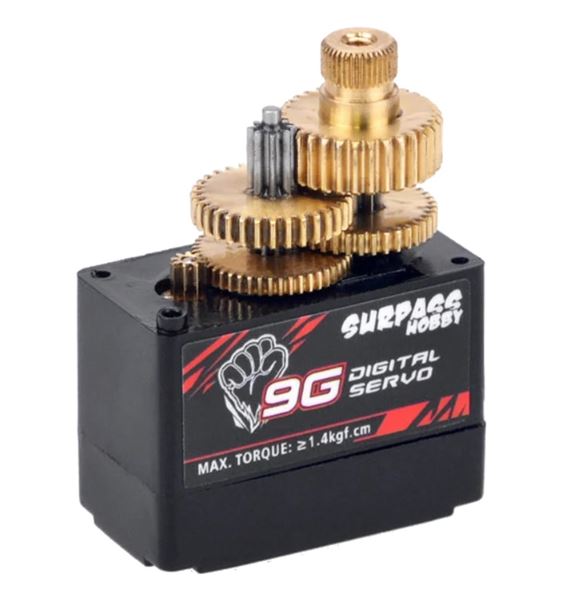

Gear type: metal gear;

FYI: The two halves of the servo's plastic outer case are held together by micro-size screws, not by a plastic band. Universal connector.
