Servo Tester for RC

SERVO TESTER - CCPM Servo Consistency Master

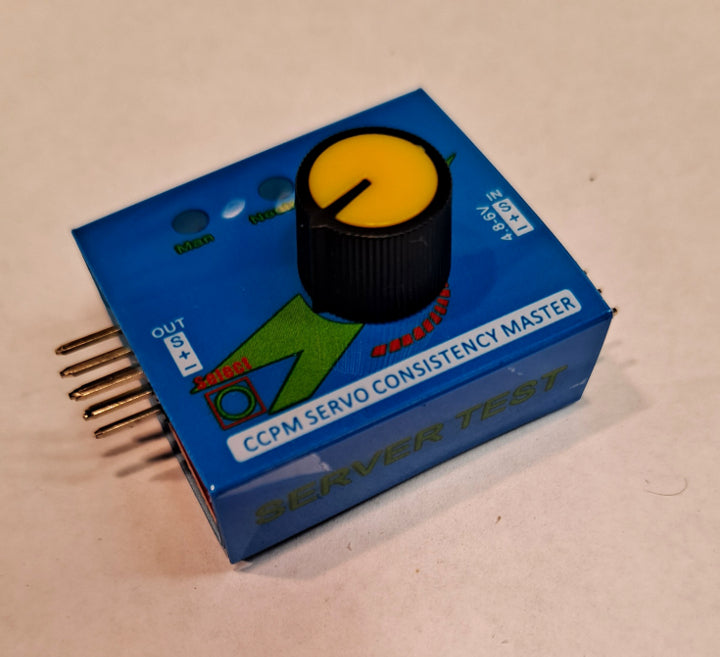

Use this very small & handy device to test your servos - center them up before installing in your RC airplane, heli, or boat. Plug your 1S or 2S Lipo Battery into one side, and you can plug one, two, or three RC servos into the other side.  Use the knob to operate the servo in each direction, or press a button and it will cycle automatically.   TAKE CARE- do not plug the battery in backwards or it will burn the unit out! And this tool is meant to test small servos, not large servos over 2oz.

Voltage: DC 4.8-6V

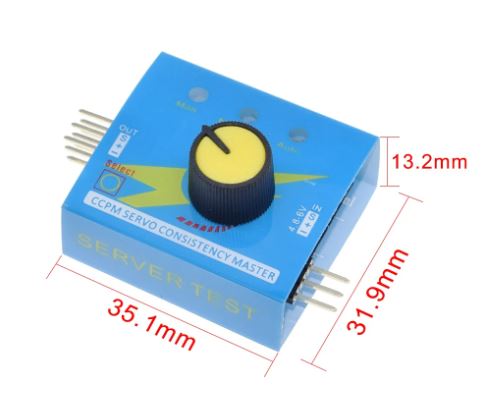

Size: 35 x 32 x 13mm (approx)
Weight: 31.5 gram (just over 1 oz)

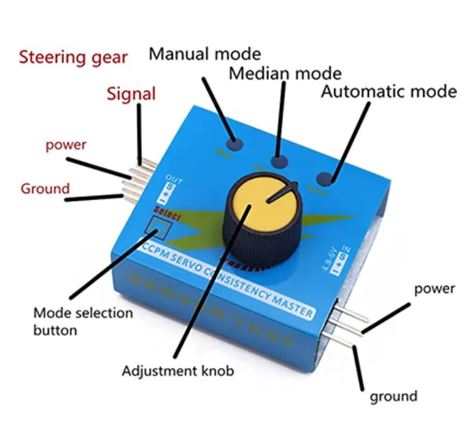

There are 3 modes using the "select" button:
1) Manual mode (default): turning the knob operates the servo.
2) Median mode: make the servo go back to the neutral (median) point.
3) Automatic "window wiper" mode: makes the servo operate with full travel one way to the other way.

NEWS FLASH - The handy device also can also be used as the "throttle" with your ESC (electronic speed controller) to test your electric motor.  THIS VIDEO by our good friend Dan Greathouse at Lazertoyz shows how this unit can be used to test your motor and servos after they've been installed on your airplane, without using your radio!

This picture is an example. ONLY test motors if there's NO propeller attached!
