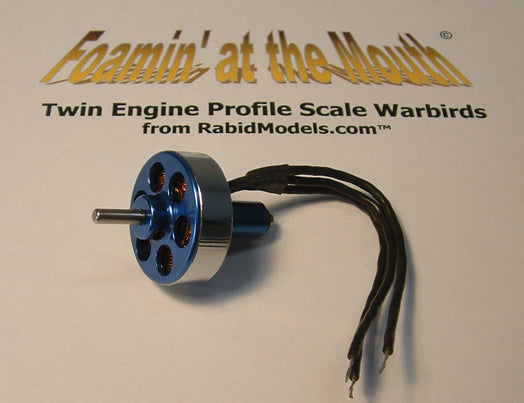

24gm 1700kv "Blue Monster" brushless motor (2.3mm connectors)

The 24gm 1700kv "Blue Monster" brushless motor (also called 2730) is a higher-speed version of the similar 1300KV "Blue Wonder" motor. The maximum recommended current draw is around 12 amps.   This one comes with the motor mount, 2.3mm bullet connectors (M&F), and an O-ring Propsaver.

Regarding the Prop - when using a 3S battery, the 1700KV motor requires a smaller propeller than the 1300kv "Blue Wonder". The recommended 2-blade propeller with a 3S battery setup is a 6x5.5 APC. We've used this combo on the Rabid Models "Combat Komet" and the ME-262.   The 1700KV motor can use a 3-blade 8x4.5 or a 2-blade 8x6 propeller when using a 2S battery.

The 1700 motor is identical in size and weight to the 1300. These motors no longer have the lovely blue anodized color that gave them their nickname, unfortunately.... they are silver now.

We offer a "motor combo package" for FUN SCALE MODELS which includes the motor with the ESC, propeller & spinner, and other accessories, CLICK HERE.

You'll also need a 12 or 15-amp ESC and a suitable propeller!  For best results we strongly recommend using a removeable "threadlocker" compound on the tiny grub screws when securing the motor to the mount.  You will also need some kind of "firewall", we sell them but a piece of 1/8" plywood will work.

Motor Specs: 1700kv

Size: 27x30mm

Shaft size: 3mm

Weight: about 24gms (1oz)

Voltage - 2S or 3S battery

Power - 110 watts approx. at 10 amps (3S)

Recommended prop - 7x4 or 6x5.5 APC high-speed

This picture shows a "Blue Monster" 1700kv motor mounted on the Rabid Models twin-engine ME262 with a 6x5.5 APC propeller and O-ring "propsaver".
